Nissan Armada 2025-2026 Service and Repair Manual: Removal & Installation
CAUTION:
Before replacing AV control unit, perform "ADDITIONAL SERVICE WHEN REPLACING AV CONTROL UNIT". For details, Refer to Work Procedure.
ADDITIONAL SERVICE WHEN REPLACING
If the following parts are replaced or removed, be sure to perform the specified incidental work in order to operate the system normally.
â—‹: Application
| Parts name | Work content | |
|---|---|---|
| Replace | Remove | |
| AV control unit | ○ | — |
REMOVAL
Remove the front center console body assembly. Refer to Removal and Installation.
Remove the AV control unit mounting nuts
and bolt
, and then remove AV control unit
.
Remove the connector and remove the AV control unit from the vehicle with the bracket attached.
INSTALLATION
CAUTION:
After replacing AV control unit, perform "ADDITIONAL SERVICE WHEN REPLACING AV CONTROL UNIT". For details, Refer to Work Procedure.
Installation is in the reverse order of removal.

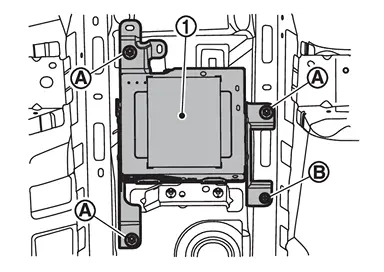

Exploded View
Bracket RH AV control unit Bracket LH : Vehicle front ...
Display Unit
...
