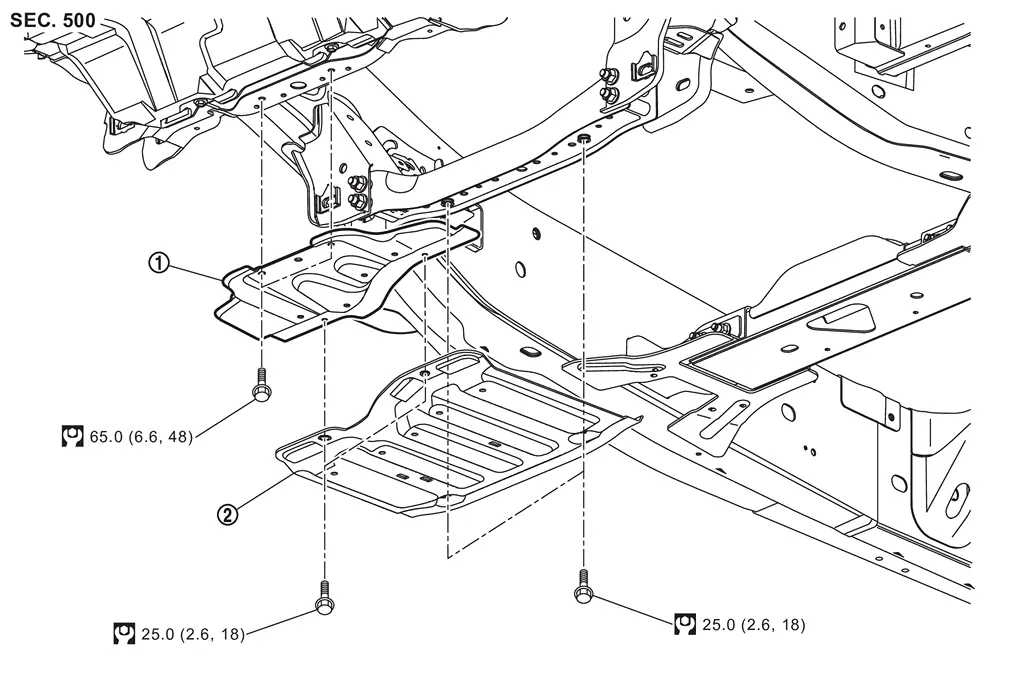

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View

Engine Under Cover

...

Removal and Installation

WARNING: REMOVAL Remove mounting bolts, and then remove engine under cover rear. Remove mounting bolts, and then remove engine under cover front. INSTALLATION Install in the reverse order of removal. ...
