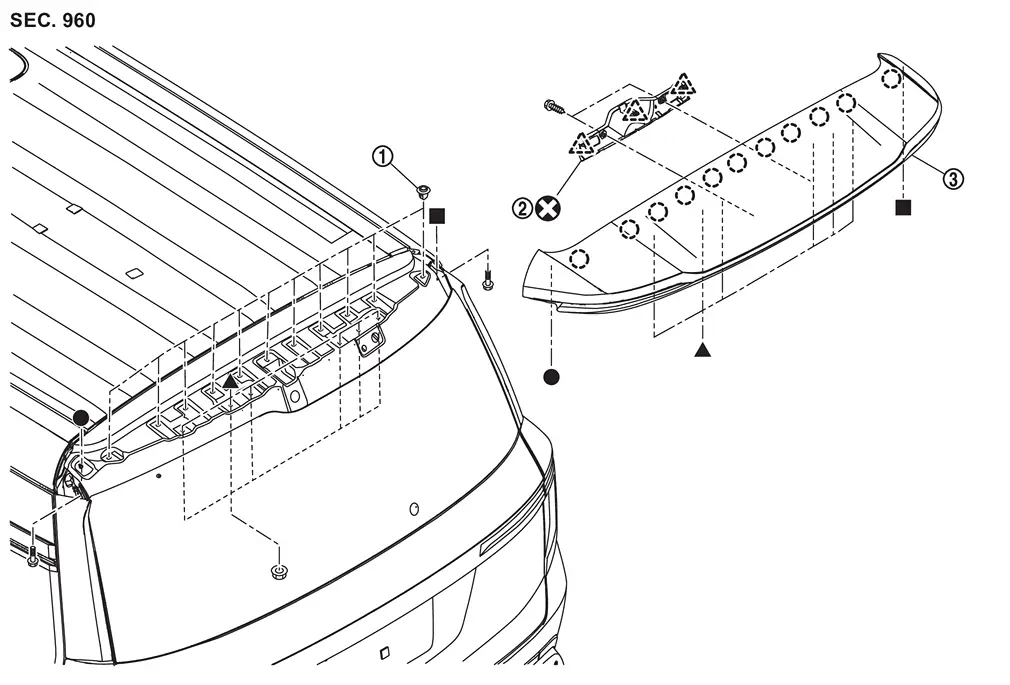

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View
 | Grommet |  | Rear spoiler cover |  | Rear spoiler |
 | : Clip | ||||
 | : Pawl | ||||
 | : Always replace after every disassembly. | ||||
 ,  ,  : Indicates that the part is connected at points with same symbol in actual vehicle. | |||||
Rear Spoiler
...
Removal and Installation
REMOVAL
Remove back door trim. Refer to Removal and Installation.
Remove mounting nuts .
Remove mounting bolts .
Disconnect rear washer tube C .
CAUTION:
When washer tube is disconnected, washer ...
