Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
REMOVAL
Remove back door trim. Refer to Removal and Installation.

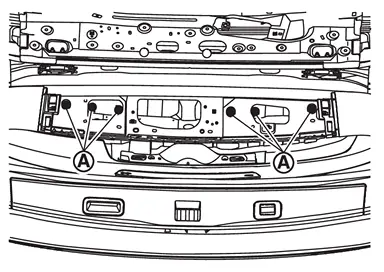

Remove mounting nuts
.

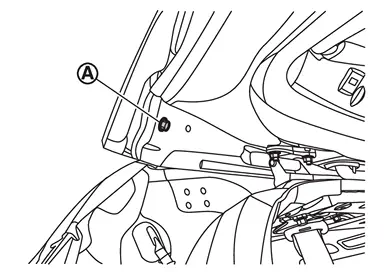

Remove mounting bolts .
Disconnect rear washer tube C
.
CAUTION:
When washer tube is disconnected, washer fluid may come out so prepare a container to receive washer fluid and never allow washer fluid to be sprinkled.

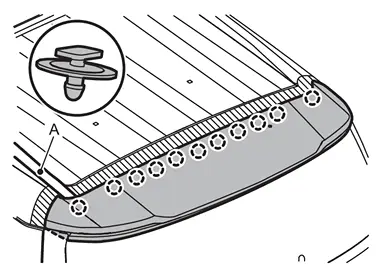

Apply protective tape (A) on the parts to protect it from damage.
Disengage fixing clips using remover tool (A), and then remove rear spoiler.
 | : Clip |
Remove the following parts after removing rear spoiler.
Rear spoiler finisher

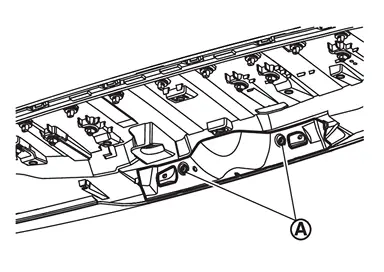

Remove fixing screws
.
.

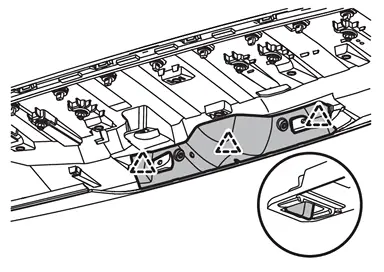

Disengage fixing pawls, and then remove rear spoiler finisher.
: Pawl
High-mounted stop lamp. Refer to Removal and Installation.
INSTALLATION
Note the following item, and then install in the reverse order of removal.
CAUTION:
When installing rear spoiler cover, replace rear spoiler cover with a new one.
Exploded View
Grommet Rear spoiler cover Rear spoiler : Clip : Pawl : Always replace after every disassembly. , , : Indicates that the part is connected at points with same symbol in actual vehicle. ...
