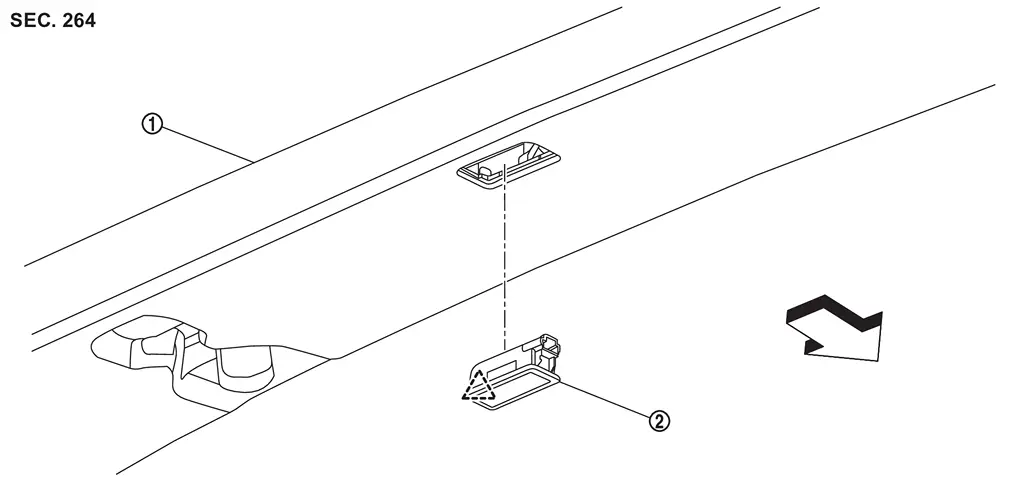

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View
 | Roof rear garnish |  | Luggage room lamp | ||
 | : Pawl | ||||
 | : Vehicle front | ||||
Removal and Installation
CAUTION:
REMOVAL
CAUTION:
Apply protective tape (A) on roof rear garnish to protect it from damage.
: Vehicle front
Disengage luggage room lamp fixing pawl using a remover tool (A), and then pull ...
