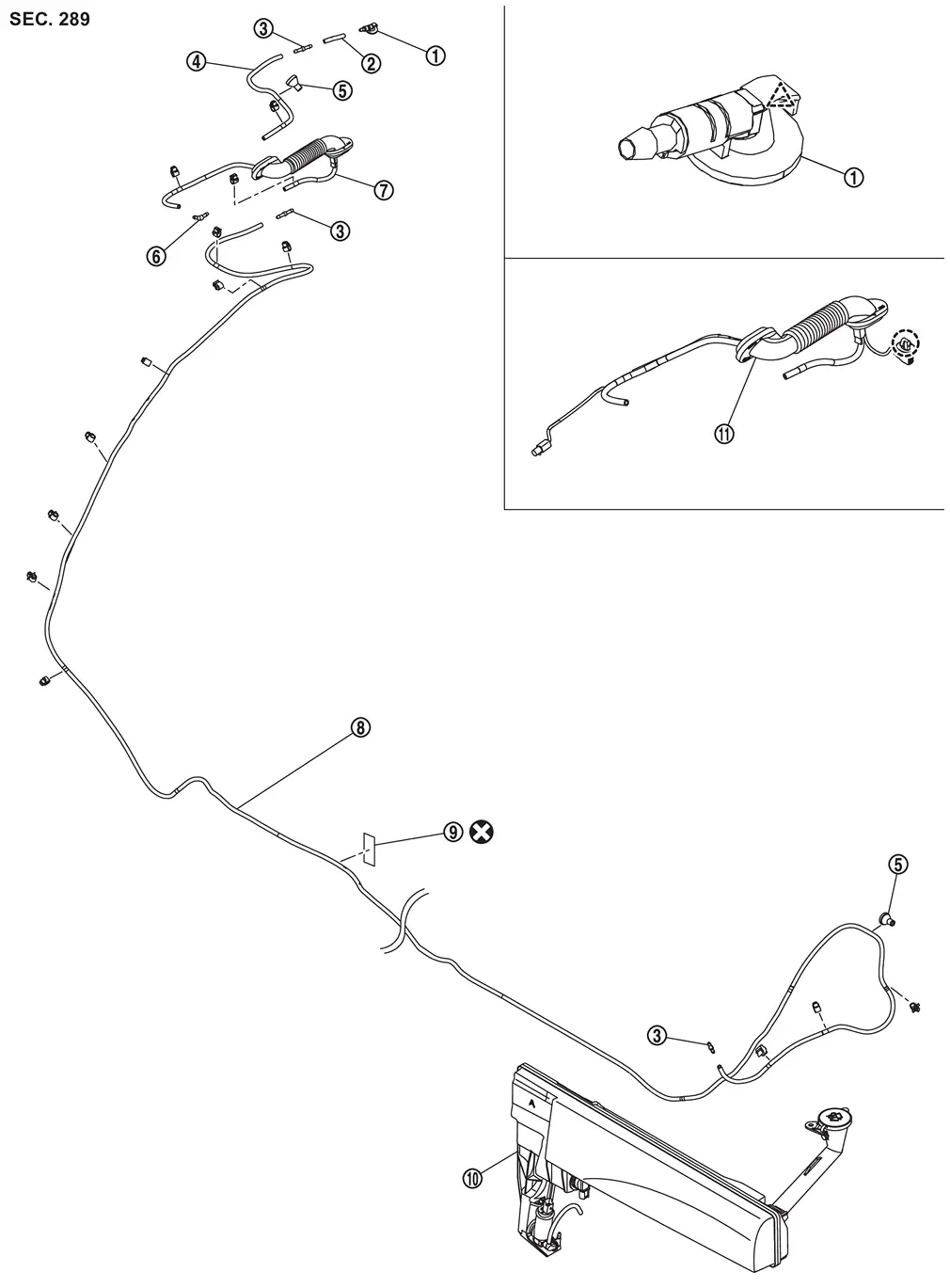

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View
 | Rear washer nozzle |  | Rear washer nozzle tube |  | Connector |
 | Rear washer tube C |  | Grommet |  | Connector |
 | Rear washer tube B assembly*1 |  | Rear washer tube A |  | Tube protector |
 | Washer tank assembly |  | Intelligent rear view mirror harness B assembly*2 | ||
 | : Clip | ||||
 | : Pawl | ||||
 | : Always replace after every disassembly. | ||||
*1: Without intelligent rear view mirror models
*2: With intelligent rear view mirror models
NOTE:
Intelligent rear view mirror harness B assembly is including rear washer tube B and grommet.
Hydraulic Layout
Rear washer tube B Rear washer nozzle Rear washer nozzle tube Rear washer tube C Rear washer tube A Washer tank assembly : Clip ...
