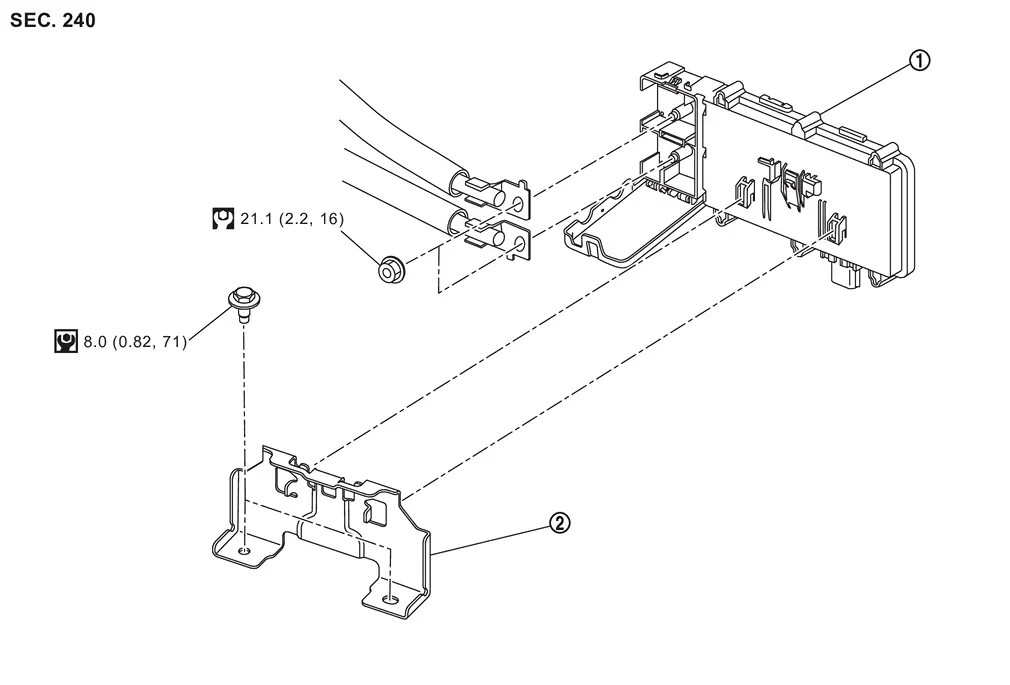

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View

Power Network Separate Relay

...

Removal and Installation

REMOVAL Disconnect the 12V battery cable from the negative terminal. Remove 12V sub battery (lithium ion battery). Refer to Removal and Installation. Check that there is no voltage (Approx. 0 V) betwe ...
