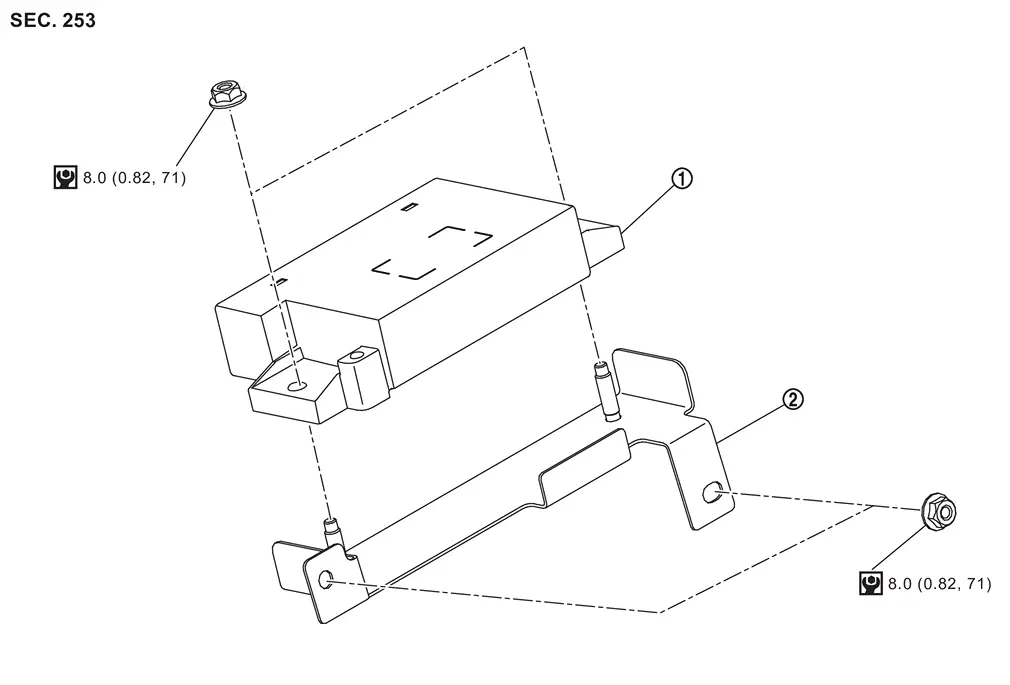

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View

Without Propilot Assist 2.1

...

Removal and Installation

REMOVAL Remove combination meter. Refer to Removal and Installation. Remove mounting screw , and remove bracket . Remove mounting nuts , and remove ADAS control unit 2 from steering member . Disc ...

Other materials:

Exploded View
REMOVAL Front wiper blade RH Front wiper arm RH Front wiper arm cap Front wiper drive assembly Front wiper arm LH Front wiper blade LH : N·m (kg-m, in-lb) : N·m (kg-m, ft-lb) DISASSEMBLY Front wiper linkage Front wiper pivot assembly Pivot cover Front wiper motor assembly : Body gr ...

Removal and Installation
REMOVAL CAUTION: Remove front grille. Refer to the following. Off road models: Removal and Installation City models: Removal and Installation Remove radiator air guide upper. Refer to Removal and Installation. Disconnect high-pressure flexible hose from condenser inlet pipe. Refer to Removal and I ...

WATER PUMP : Removal & Installation
WARNING: CAUTION: When removing water pump assembly, be careful not to get engine coolant on drive belts. Water pump cannot be disassembled and should be replaced as a unit. After installing water pump, connect hose and clamp securely, then check for leakage using the radiator cap tester (commercial ...
