Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
REMOVAL
Remove combination meter. Refer to Removal and Installation.

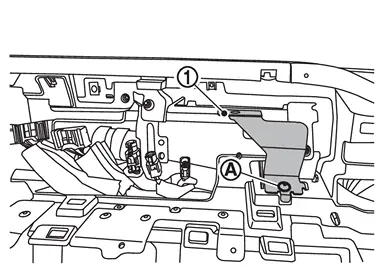

Remove mounting screw
, and remove bracket
.
Remove mounting nuts , and remove ADAS control unit 2 from steering member
.
Disconnect ADAS control unit 2 connector.
Remove mounting nuts , and remove ADAS control unit 2 from bracket .
INSTALLATION
Note the following, and install in the reverse order of removal.
CAUTION:
Be sure to perform “ADDITIONAL SERVICE WHEN REPLACING ADAS CONTROL UNIT 2” when replacing ADAS control unit 2. Refer to Work Procedure.
Exploded View
ADAS control unit 2 Bracket : N·m（kg-m、in-lb） ...
