Nissan Armada 2025-2026 Service and Repair Manual: Exploded View

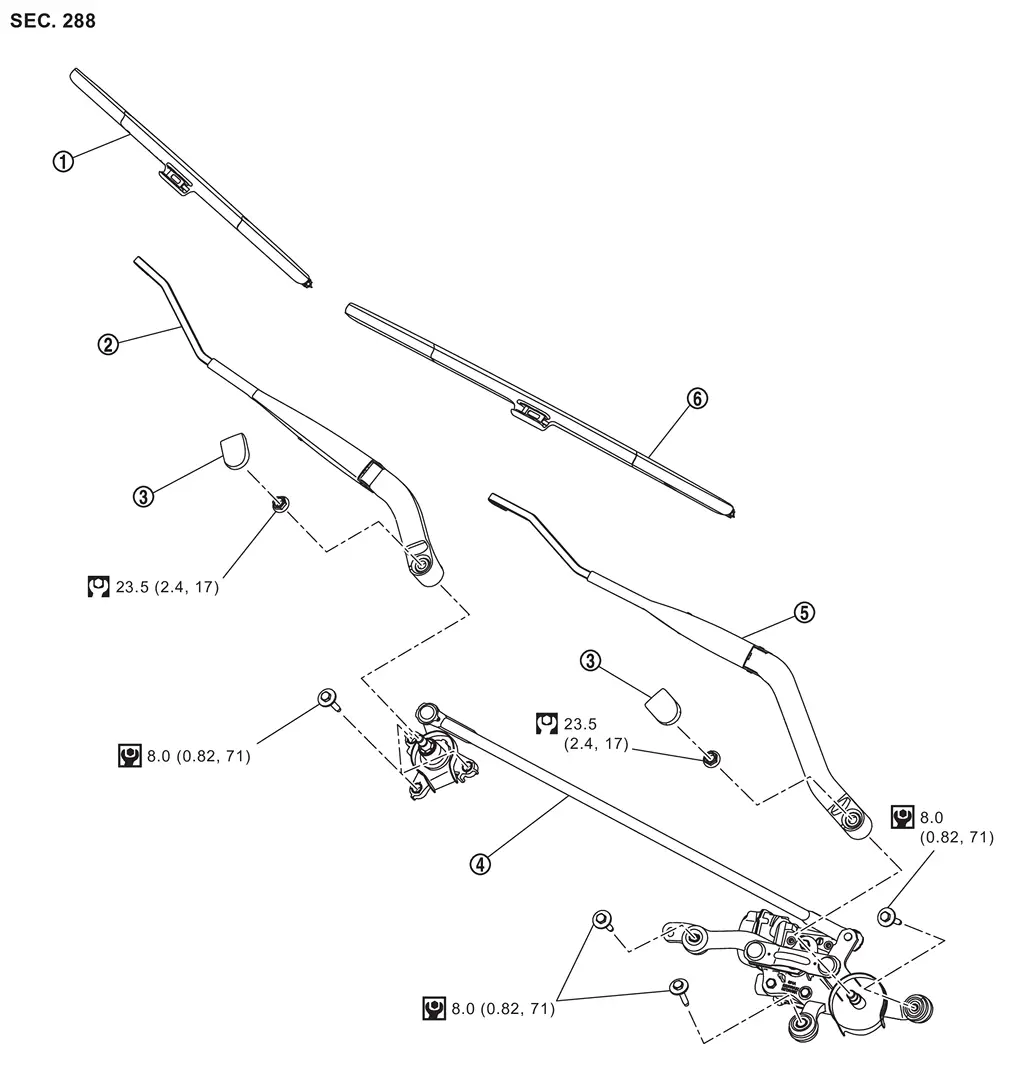

REMOVAL
 | Front wiper blade RH |  | Front wiper arm RH |  | Front wiper arm cap |
 | Front wiper drive assembly |  | Front wiper arm LH |  | Front wiper blade LH |
 | : N·m (kg-m, in-lb) | ||||
 | : N·m (kg-m, ft-lb) | ||||

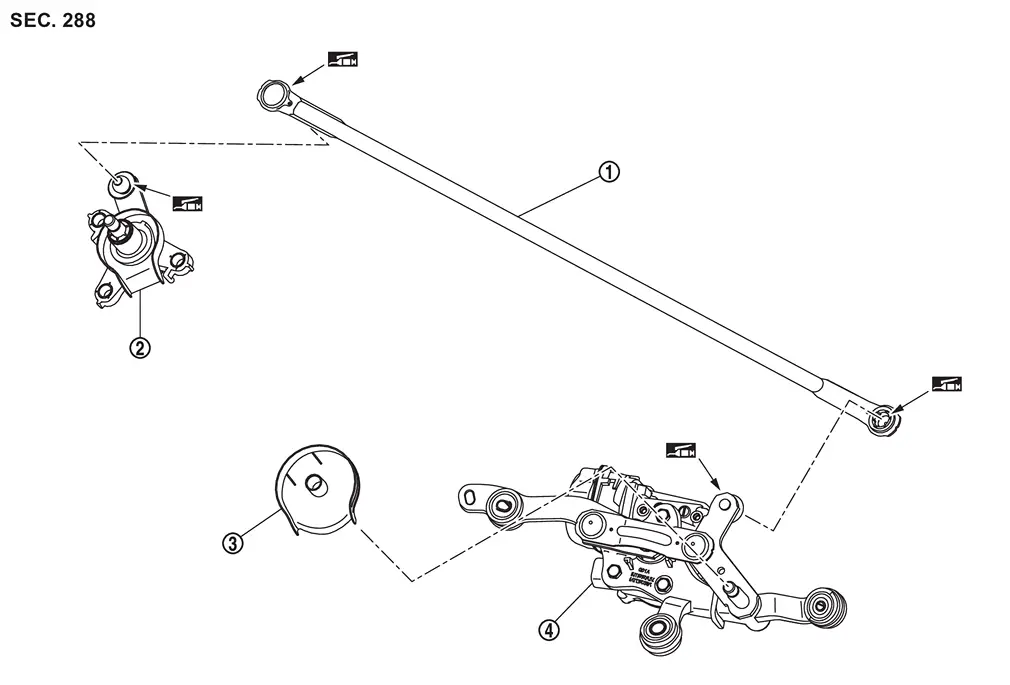

DISASSEMBLY
| Front wiper linkage | | Front wiper pivot assembly | | Pivot cover |
| Front wiper motor assembly | ||||
 | : Body grease | ||||
Front Wiper
...
Front Wiper Arm
...
