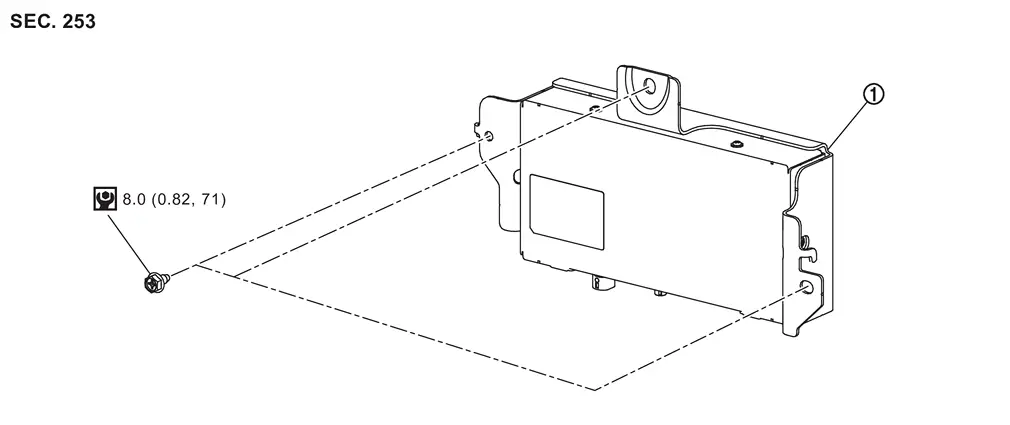

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View
 | Front camera unit |
Removal and Installation
REMOVAL
Remove luggage side lower finisher LH. Refer to Removal and Installation.
Disconnect front camera unit harness connectors .
Remove mounting bolts , and remove front camera unit .
INSTALLA ...
