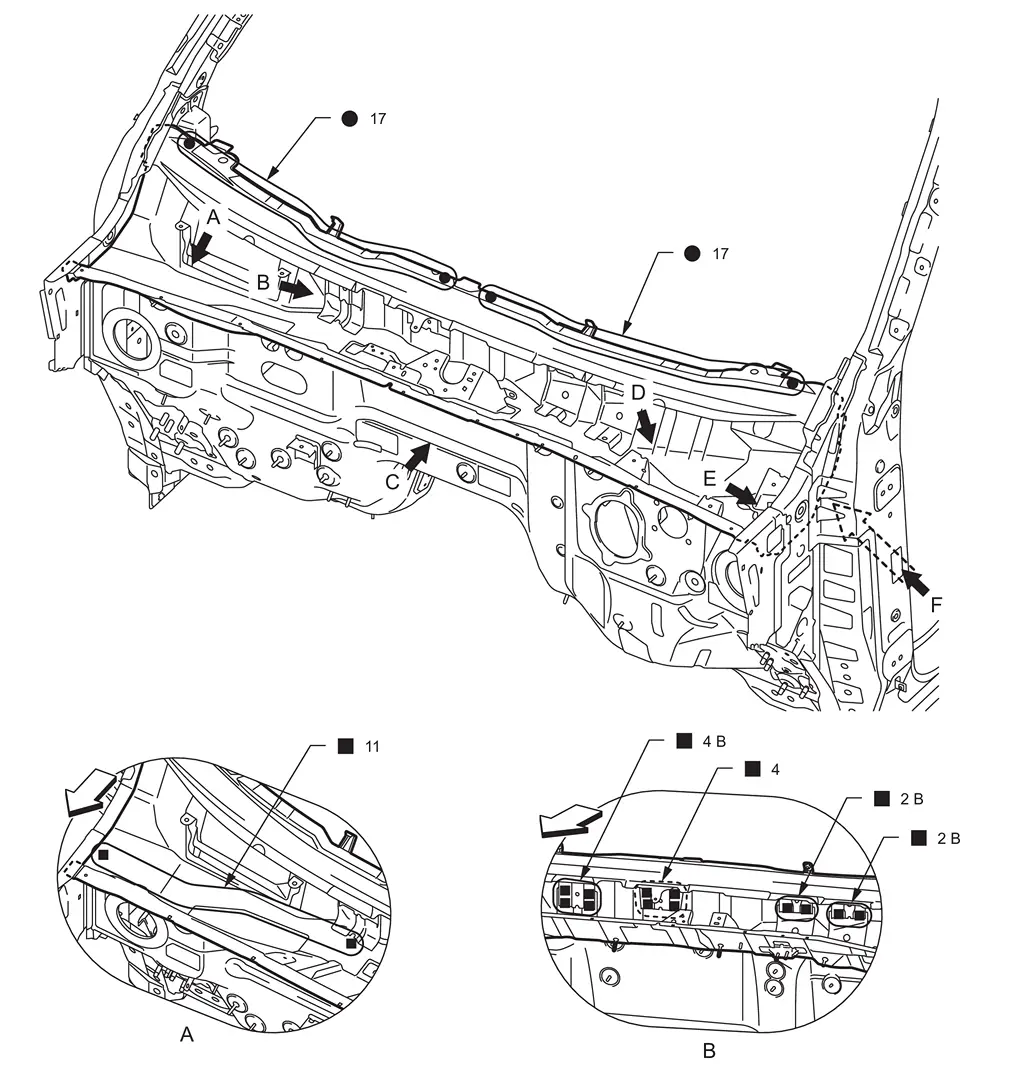

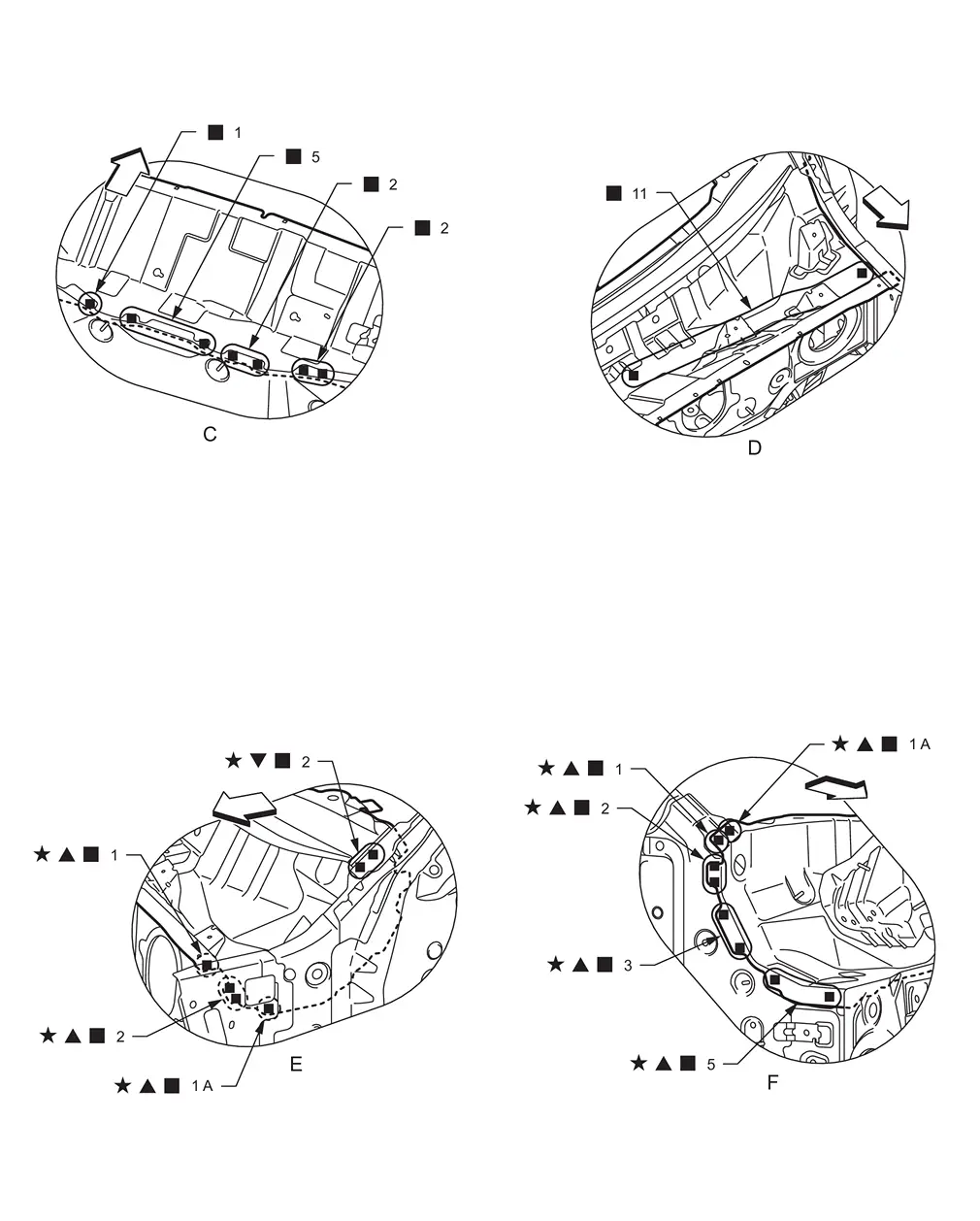

Nissan Armada 2025-2026 Service and Repair Manual: Upper Dash
WARNING:
Work after radiator core main support, side radiator core support, and hoodledge are removed.
 : Weld the parts onto the back of the component part. | |||||
| Replacement part | |||||
| • | Upper dash assembly | • | Cowl top assembly | ||
: Vehicle front
 : Welding method and the number of welding points apply to both sides of the vehicle. |
Front Pillar
WARNING:
Work after hoodledge reinforcement and roof are removed.
Body sealing Urethane foam Unit: mm (in) : Vehicle front
: Weld the parts onto the back of the component part. Replacement part ...
Lower Dash
WARNING:
Work after radiator core main support, side radiator core support, hoodledge, and upper dash are removed.
: Vehicle front
: Welding method and the number of welding points apply to both side ...
