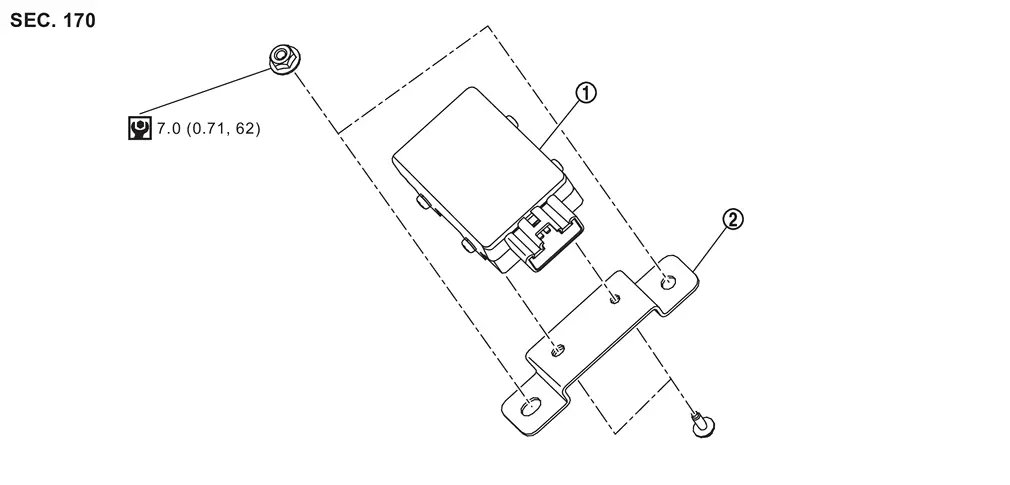

Nissan Armada 2025-2026 Service and Repair Manual: FUEL PUMP CONTROL MODULE (FPCM) : Exploded View
 | Fuel pump control module |  | Bracket | ||
 | : N·m (kg-m, in-lb) |
FUEL PUMP CONTROL MODULE (FPCM) : Removal & Installation
REMOVAL
Remove the luggage side finisher LH. Refer to Exploded View.
Disconnect fuel pump control module (FPCM) harness connector and remove the FPCM from the vehicle.
Remove bracket from fuel pump co ...
