Nissan Armada 2025-2026 Service and Repair Manual: Garage Jack and Safety Stand
WARNING:
CAUTION:
Place a wooden or rubber block between safety stand and vehicle body when the supporting body is flat.
Never place a jack on the cooling fin of rear final drive assembly.
Place a jack on the mating surface of rear final drive assembly and rear cover (rear side).

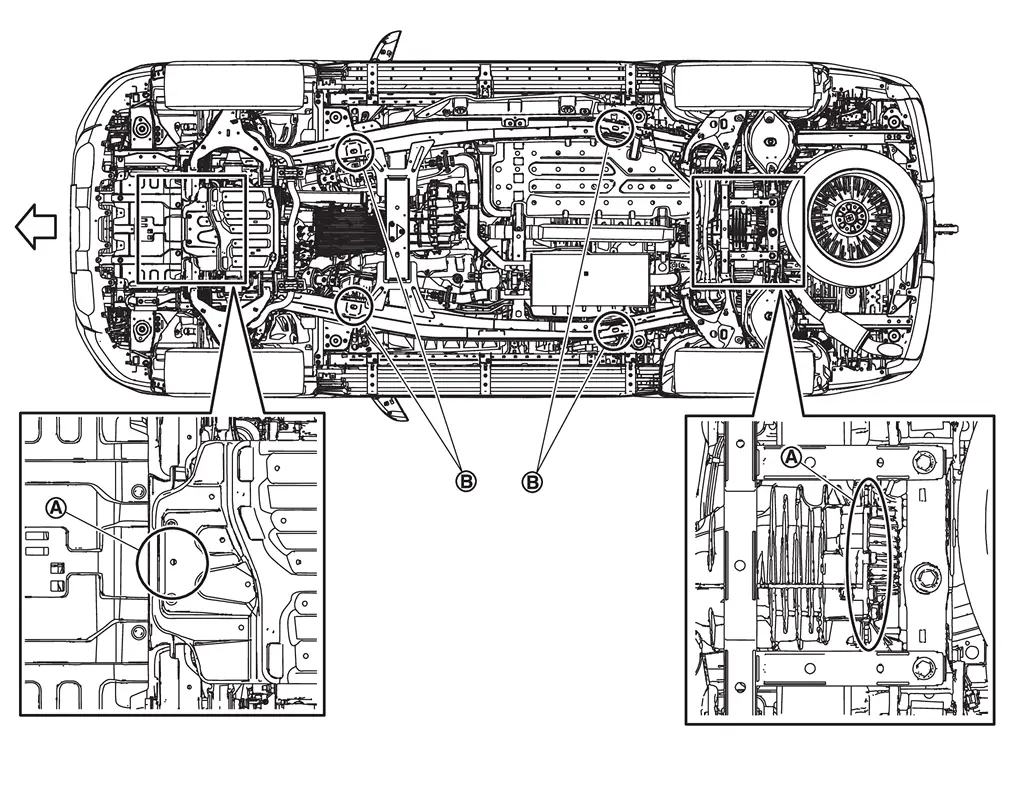

 | : Garage jack point | ||||
 | : Safety stand point | ||||
 | : Vehicle front | ||||
Pantograph Jack
WARNING:
Jacking up or lifting up the vehicle may the vehicle height to go down which cause a personal injury and/or damage to the air suspension component parts. Refer to Precaution for when Jacking ...
2-Pole Lift
WARNING:
When lifting the vehicle, open the lift arms as wide as possible and ensure that the front and rear of the vehicle are well balanced.
When setting the lift arm, never allow the arm to contact ...
