Nissan Armada 2025-2026 Service and Repair Manual: Pantograph Jack
WARNING:
Jacking up or lifting up the vehicle may the vehicle height to go down which cause a personal injury and/or damage to the air suspension component parts. Refer to Precaution for when Jacking and Lifting Up the Vehicle with Electronic Air Suspension System (With electronic air suspension).
When checking under the vehicle or inside wheel house, always turn OFF the electronic air suspension function with the vehicle unladen and normal height, since the suspension may accidentally move and it can lead to personal injury. Refer to Precaution for Electronic Air Suspension System (With electronic air suspension).
Never get under the vehicle while it is supported only by the jack. Always use safety stands to support the frame when you have to get under the vehicle.
Place wheel chocks at both front and back of the wheels on the ground.

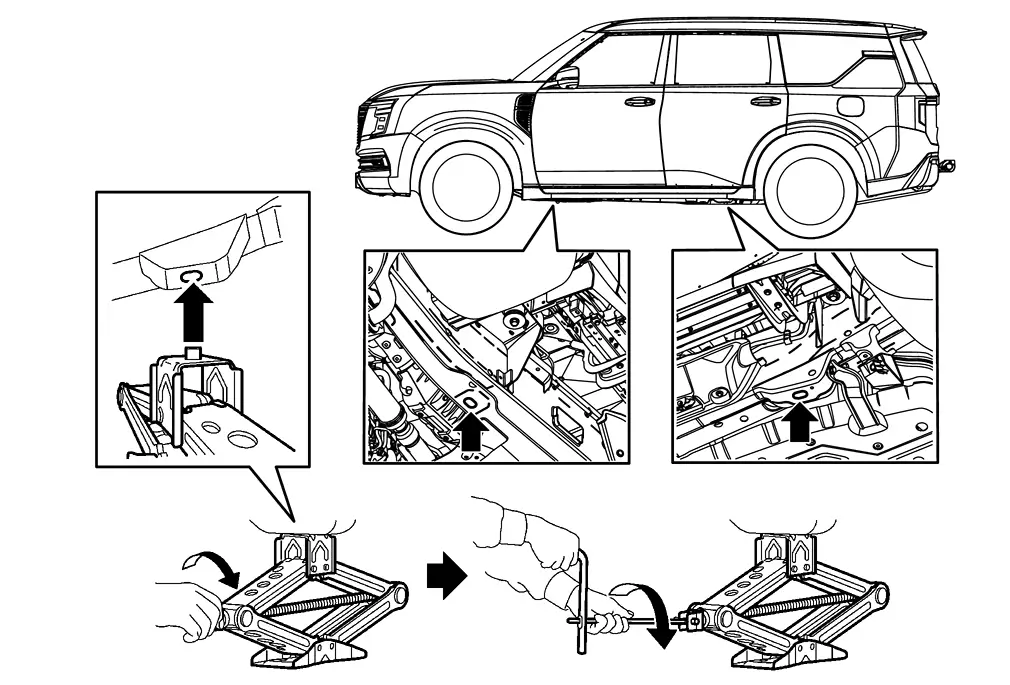

Lifting Point
...
Garage Jack and Safety Stand
WARNING:
CAUTION:
Place a wooden or rubber block between safety stand and vehicle body when the supporting body is flat.
Never place a jack on the cooling fin of rear final drive assembly.
Place a jac ...
