Nissan Armada 2025-2026 Service and Repair Manual: Hooks and Other Tools
(1) HOOKS
Unlike clamps which grab an object, hooks are curved tools that pull on the body. When a hook is used, it must be set so that the point where the body is pulled and the position of the hook's chain are lined up straight.
When a hook is used, a piece of wood, etc. should be inserted between the hook and body in order to prevent damage to the body.
(2) SPECIFIC-USE PULLING TOOL
Specific-use pulling tools are special jigs which are used to repair a specific part of the vehicle.

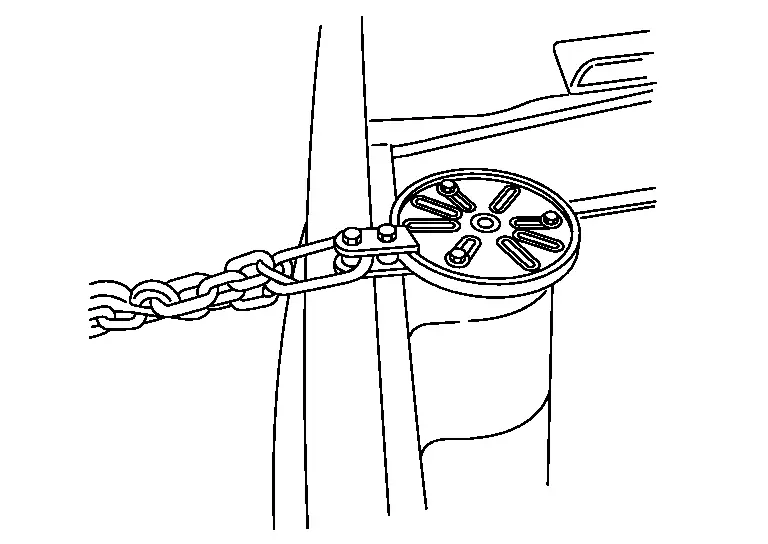

An example of a specific-use pulling tools, a strut puller, is shown in the figure.
