Nissan Armada 2025-2026 Service and Repair Manual: How To Check
If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse.
Use fuse of specified rating. Never use fuse of more than specified rating.
Do not partially install fuse; always insert it into fuse holder properly.
Remove fuse for “ELECTRICAL PARTS (BAT)” if vehicle is not used for a long period of time.
EXTENDED STORAGE FUSE SWITCH (IF EQUIPPED)
The following switch may be mounted on the fuse block (Junction Box) for transportation and storage.

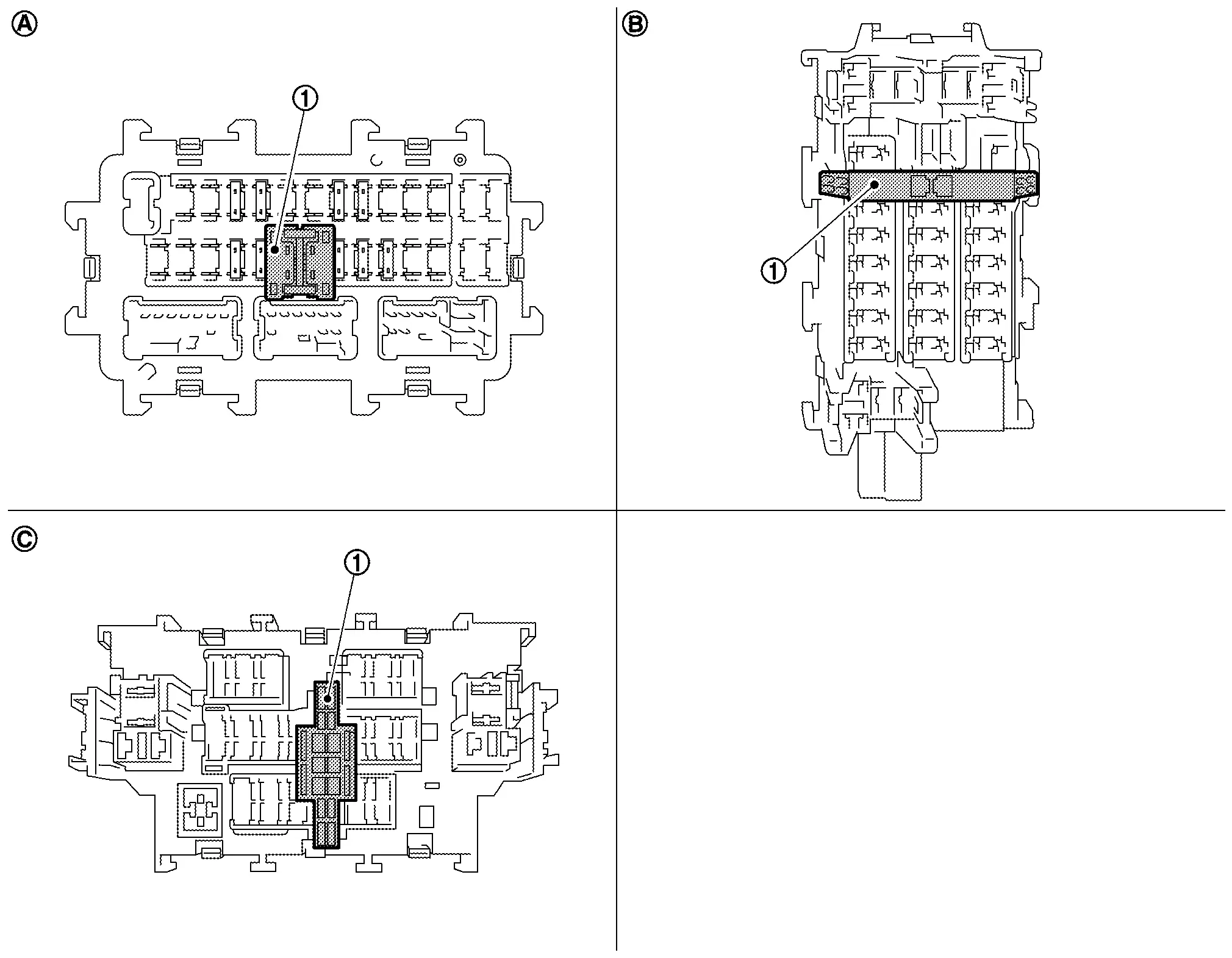

 | Extended storage fuse switch | ||||
 | Type A |  | Type B |  | Type C |
Remove the extended storage fuse switch if it causes the interference when checking fuses.
How To Extended Storage Fuse Switch ON/OFF
CAUTION:
Turn the ignition switch OFF when operating the extended storage fuse switch.
Under normal conditions, keep the extended storage fuse switch in ON state. Never operate the extended storage fuse switch except when necessary.

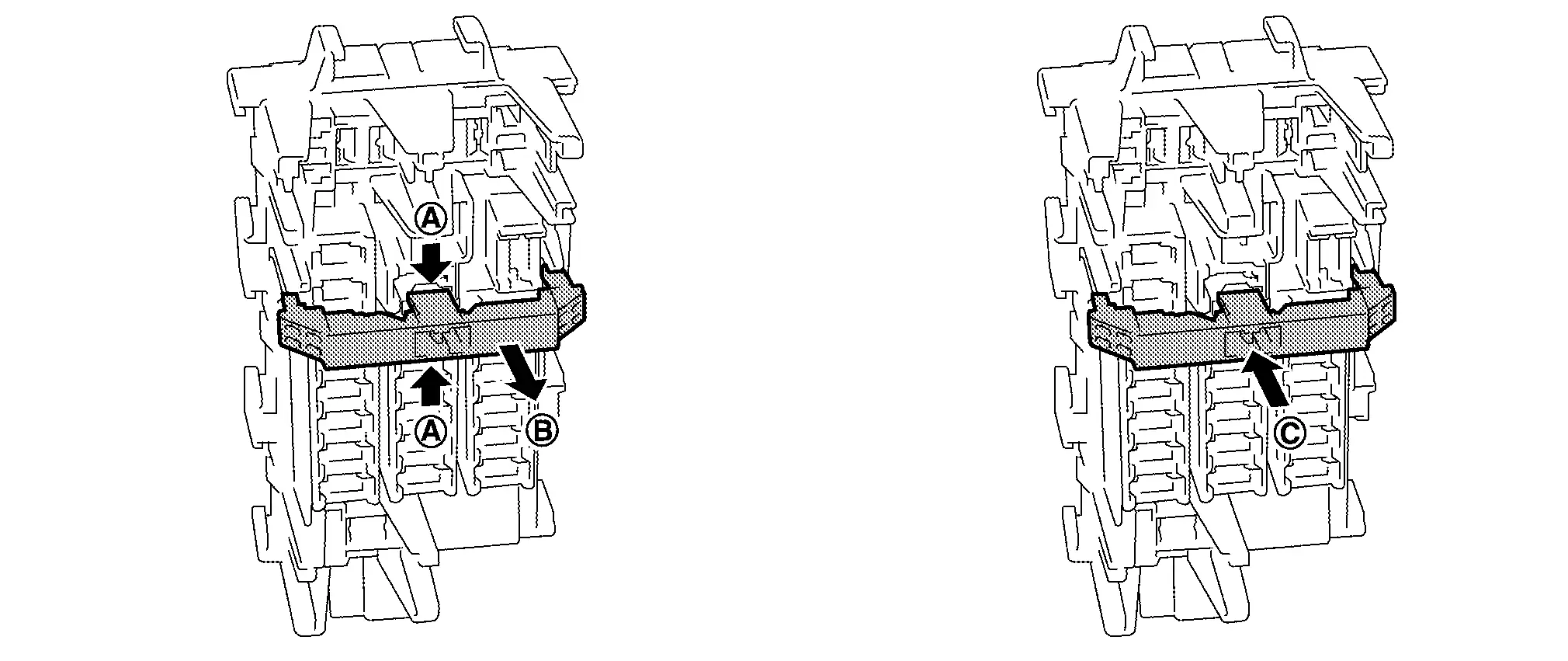

Type A
To turn the extended storage fuse switch OFF, pull it up in
direction as shown in the figure.To turn the extended storage fuse switch ON, press it in
direction as shown in the figure.

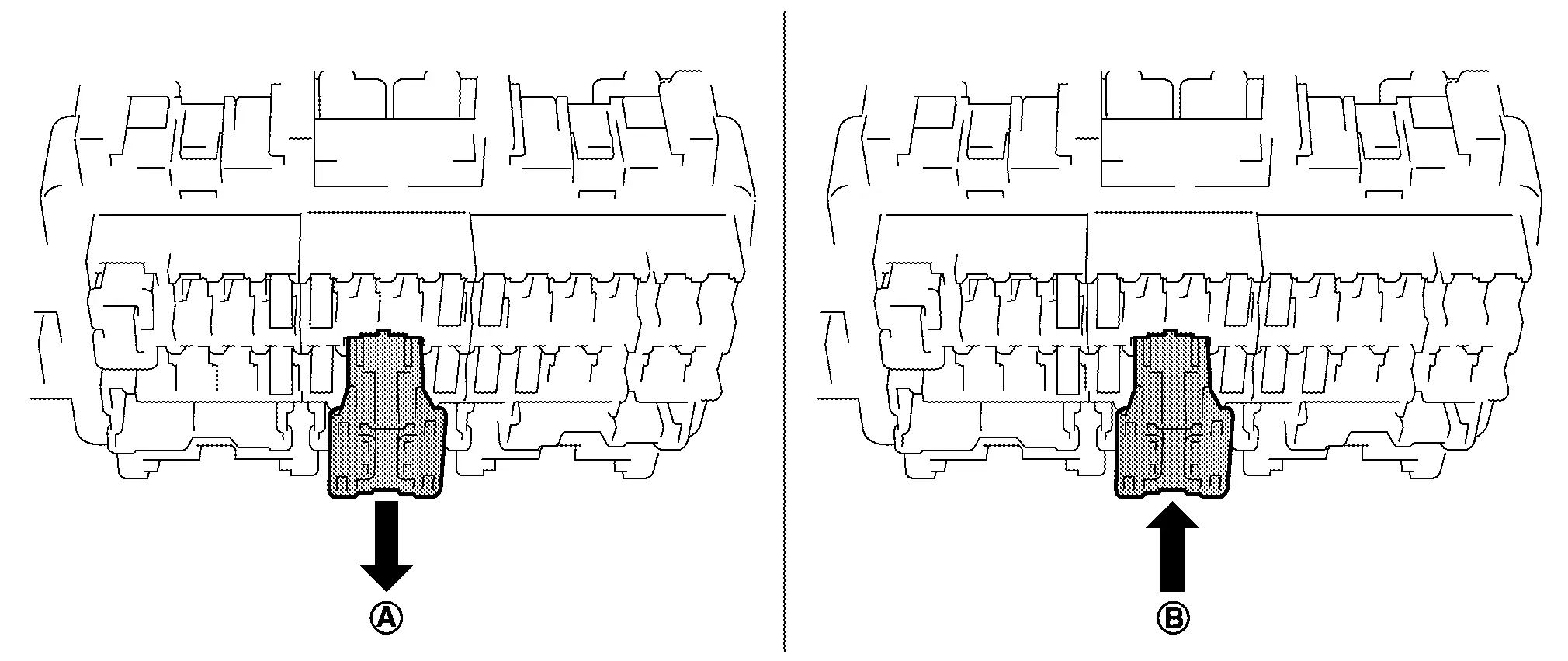

Type B
To turn the extended storage fuse switch OFF, hold
of the switch and pull up in direction as shown in the figure.

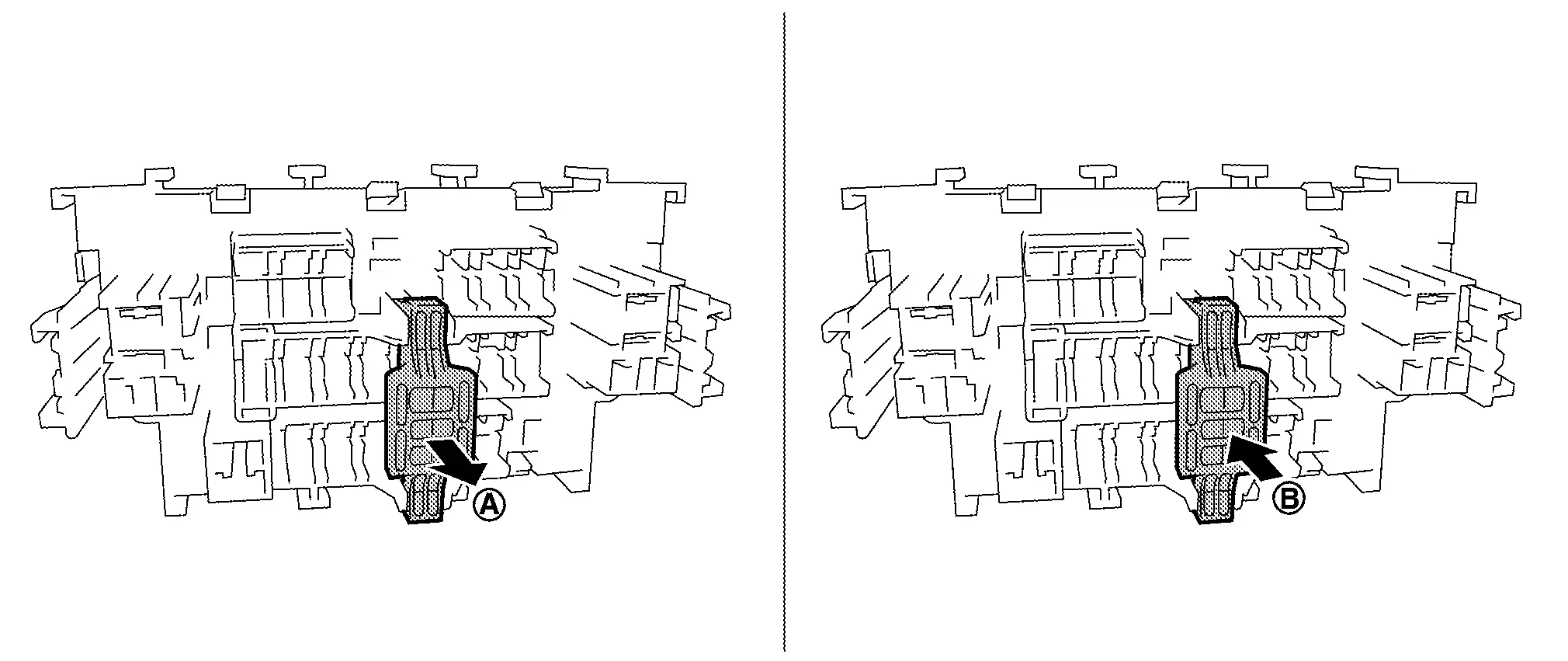

Type C
To turn the extended storage fuse switch OFF, pull it up in
direction as shown in the figure.
How To Remove Extended Storage Fuse Switch

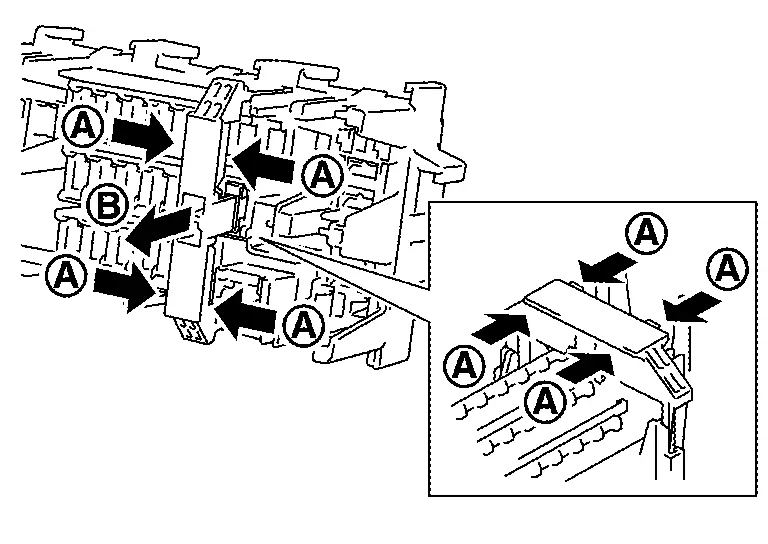

Type A
Turn the ignition switch OFF.
Turn the extended storage fuse switch OFF.
Press pawl
and tilt to disengage the extended storage fuse switch. Press pawl and tilt to remove the extended storage fuse switch.
CAUTION:
Never use fuse for bus bar.
NOTE:Extended storage fuse switch and bus bar are removed together. Remove bus bar from extended storage fuse switch, if necessary.
Install removed bus bar to fuse block.
Extended storage fuse switch is for transportation and storage. Reinstallation is not required after the removal.

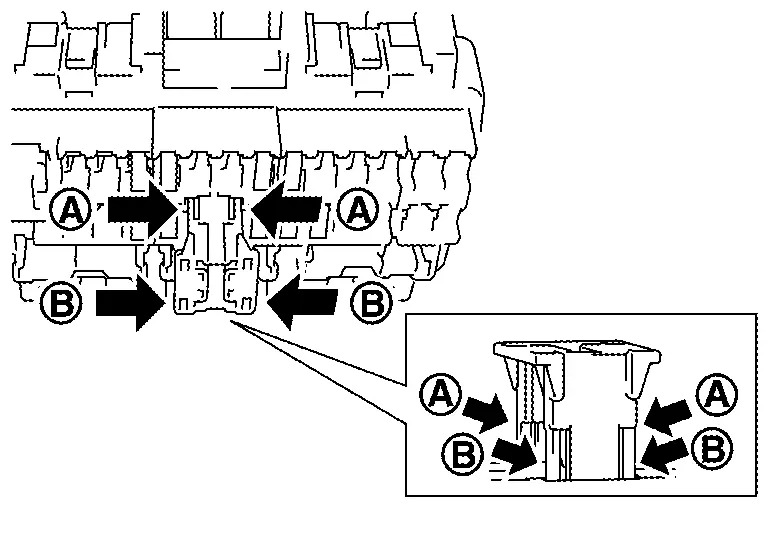

Type B
Turn the ignition switch OFF.
Turn the extended storage fuse switch OFF.
Hold
and pull up the extended storage fuse switch hard in direction.
CAUTION:
Never use fuse for bus bar.
NOTE:Extended storage fuse switch and bus bar may be removed together. Remove bus bar from extended storage fuse switch, if necessary.
Install removed bus bar to fuse block.

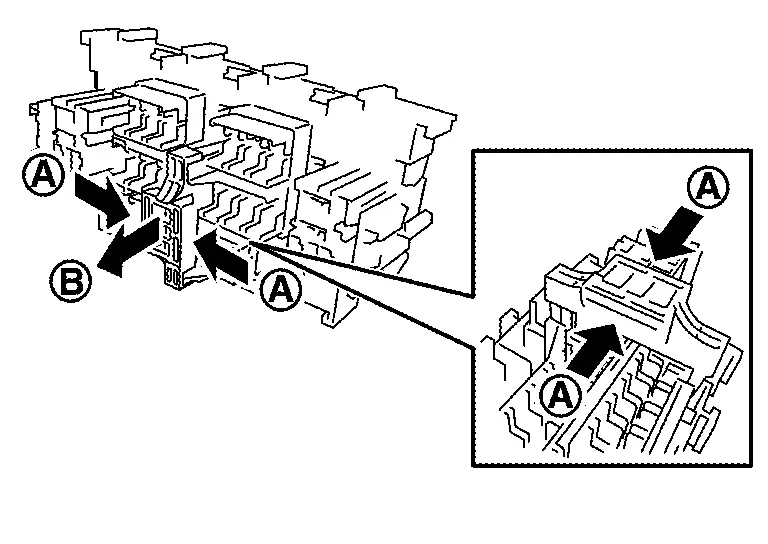

Type C
Turn the ignition switch OFF.
Turn the extended storage fuse switch OFF.
Hold
and pull up the extended storage fuse switch hard in direction.
CAUTION:
Never use fuse for bus bar.
NOTE:Extended storage fuse switch and bus bar are removed together. Remove bus bar from extended storage fuse switch, if necessary.
Install removed bus bar to fuse block.
Fuse Inspection
...
