Nissan Armada 2025-2026 Service and Repair Manual: Hydraulic Layout

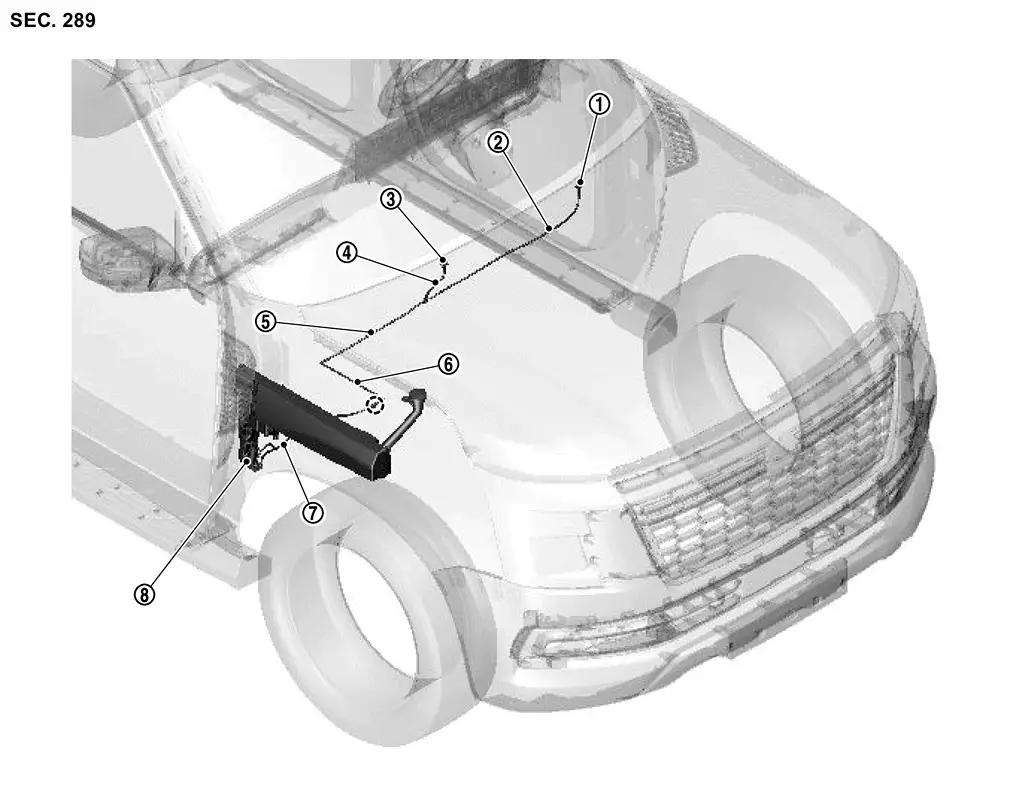

Exploded View

Front washer nozzle LH Front washer nozzle tube LH Front washer nozzle RH Front washer nozzle tube RH Check valve Front washer tube C Connector Front washer tube B Front washer tube A Washe ...

Front Washer Nozzle

...

Other materials:

Exploded View
Front cover Dowel pin Oil pressure sensor Oil temperature sensor Crankshaft pulley bolt Crankshaft pulley Front oil seal O-ring(oil line) O-ring(water line) Comply with the installation procedure when tightening. Refer to Removal & Installation. : N·m (kg-m, ft-lb) : Always replac ...

Lubricant or/and Sealant
Name Description Note Three bond 1215 Cylinder block Water drain plug Three bond 1217H Rocker cover Valve timing control cover Front cover Oil pan (upper) Camshaft Cylinder block — Three bond 1386B Cylinder block Plug ...
