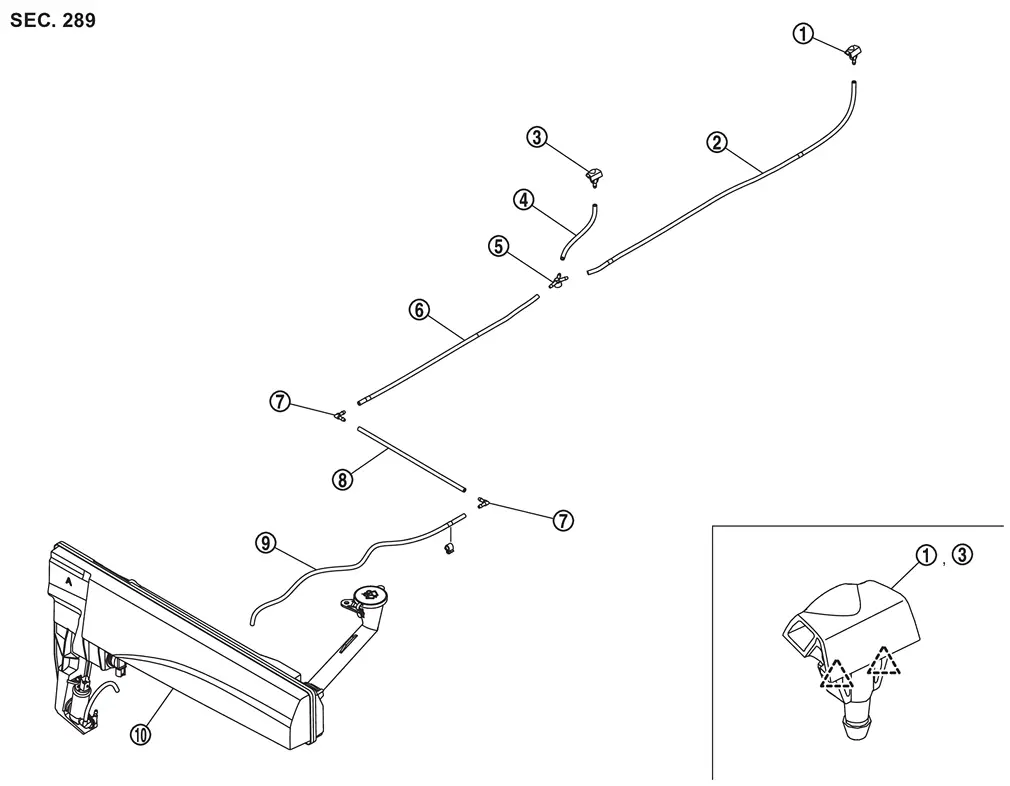

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View

Front Washer Nozzle and Tube

...

Hydraulic Layout

Front washer nozzle LH Front washer nozzle tube LH Front washer nozzle RH Front washer nozzle tube RH Front washer tube C Front washer tube B Front washer tube A Washer tank assembly : Clip ...
