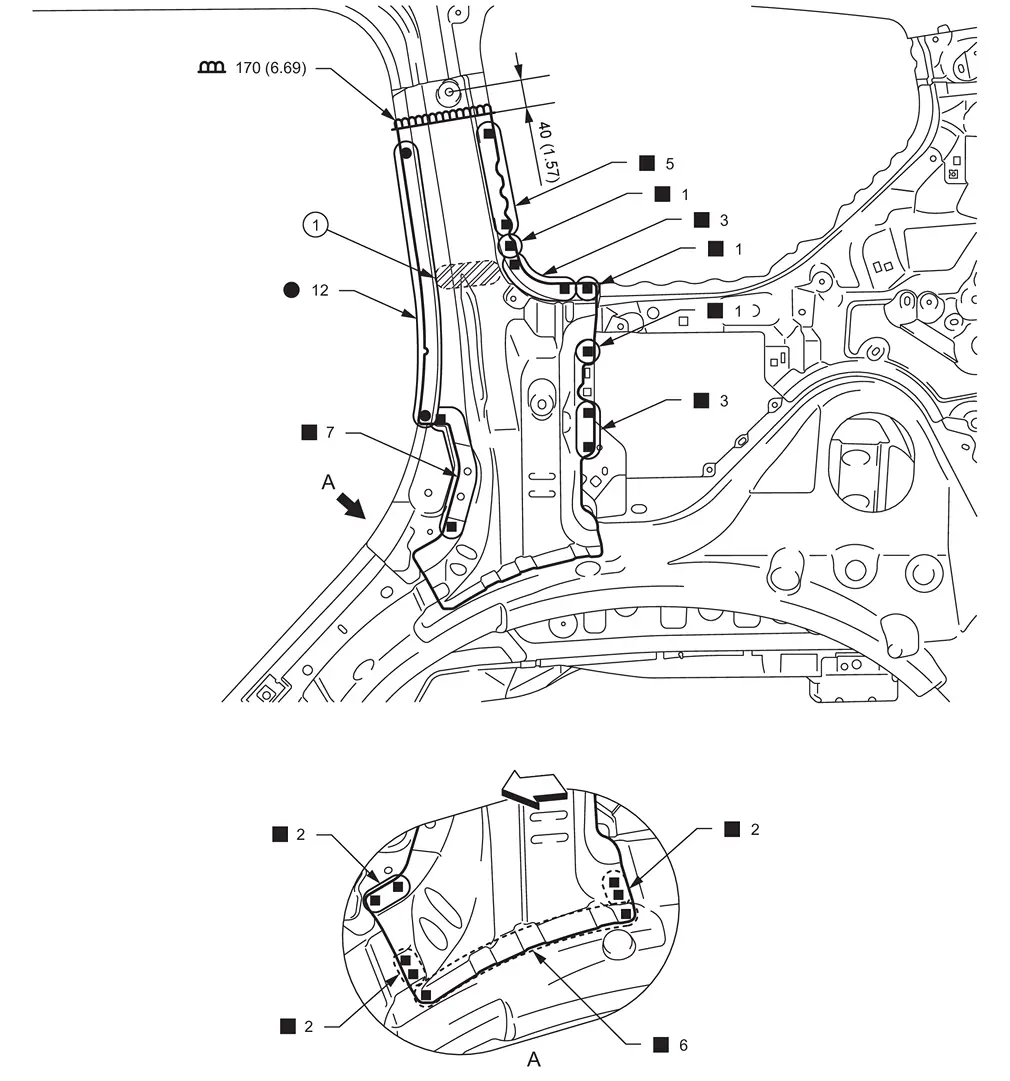

Nissan Armada 2025-2026 Service and Repair Manual: Inner Rear Pillar Reinforcement
WARNING:
Work after rear fender is removed.
 | Urethane foam | ||||
| Unit: mm (in) | |||||
 : Weld the parts onto the back of the component part. | |||||
| Replacement part | |||||
| • | Inner rear pillar reinforcement | ||||
: Vehicle front
