Nissan Armada 2025-2026 Service and Repair Manual: Inner Rear Pillar
WARNING:
Work after rear fender, inner rear pillar reinforcement, and back pillar reinforcement are removed.
Remove the welding point
for easier installation.

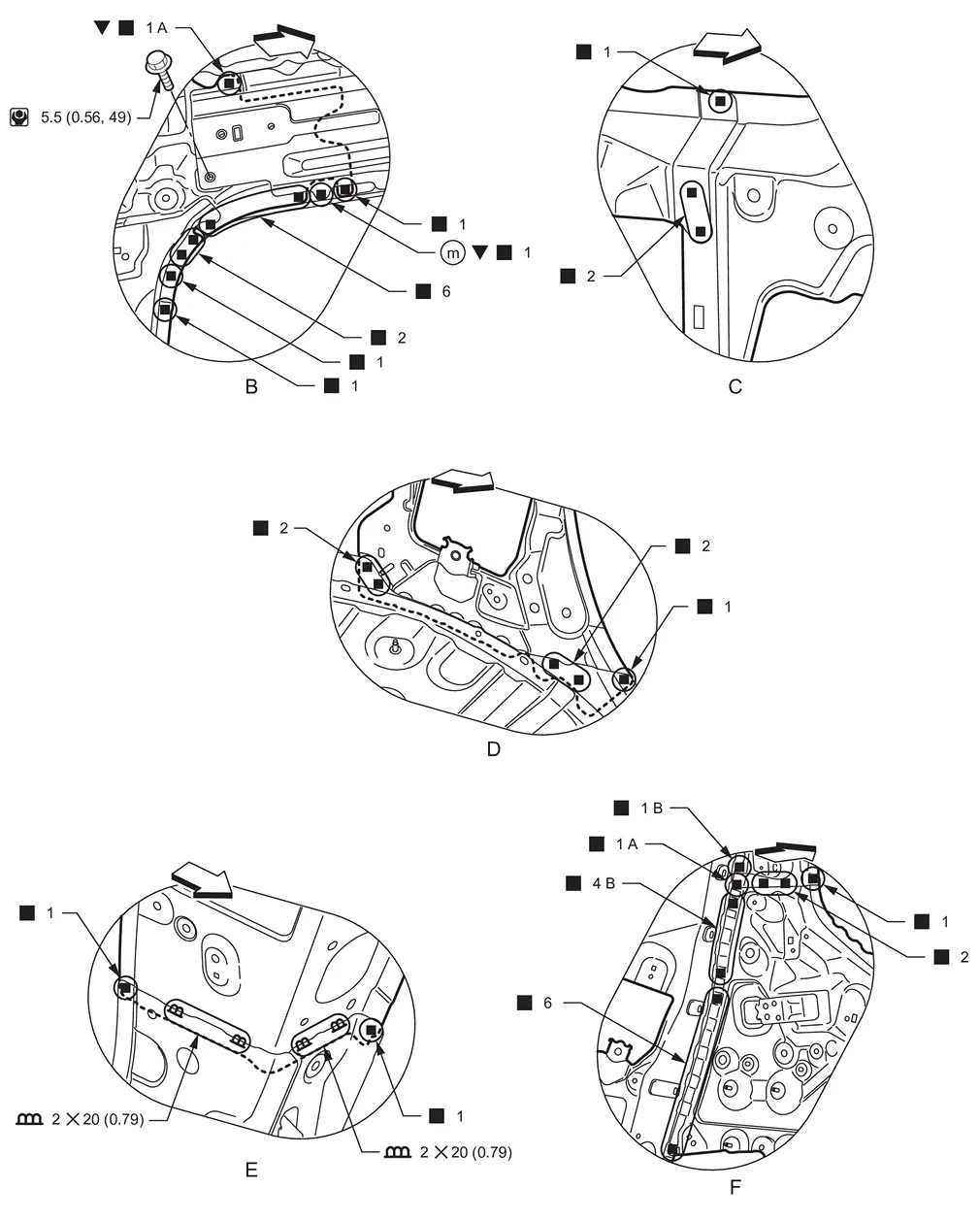

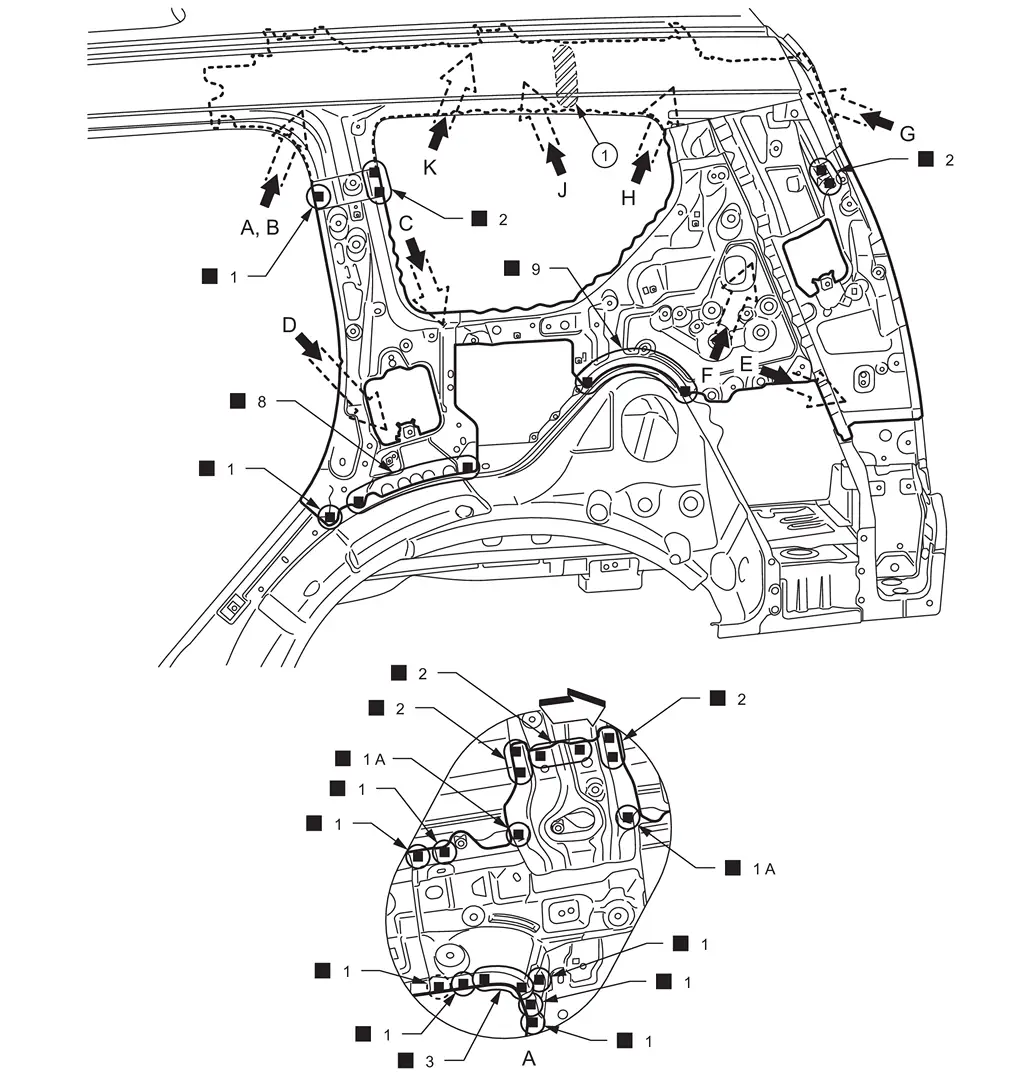

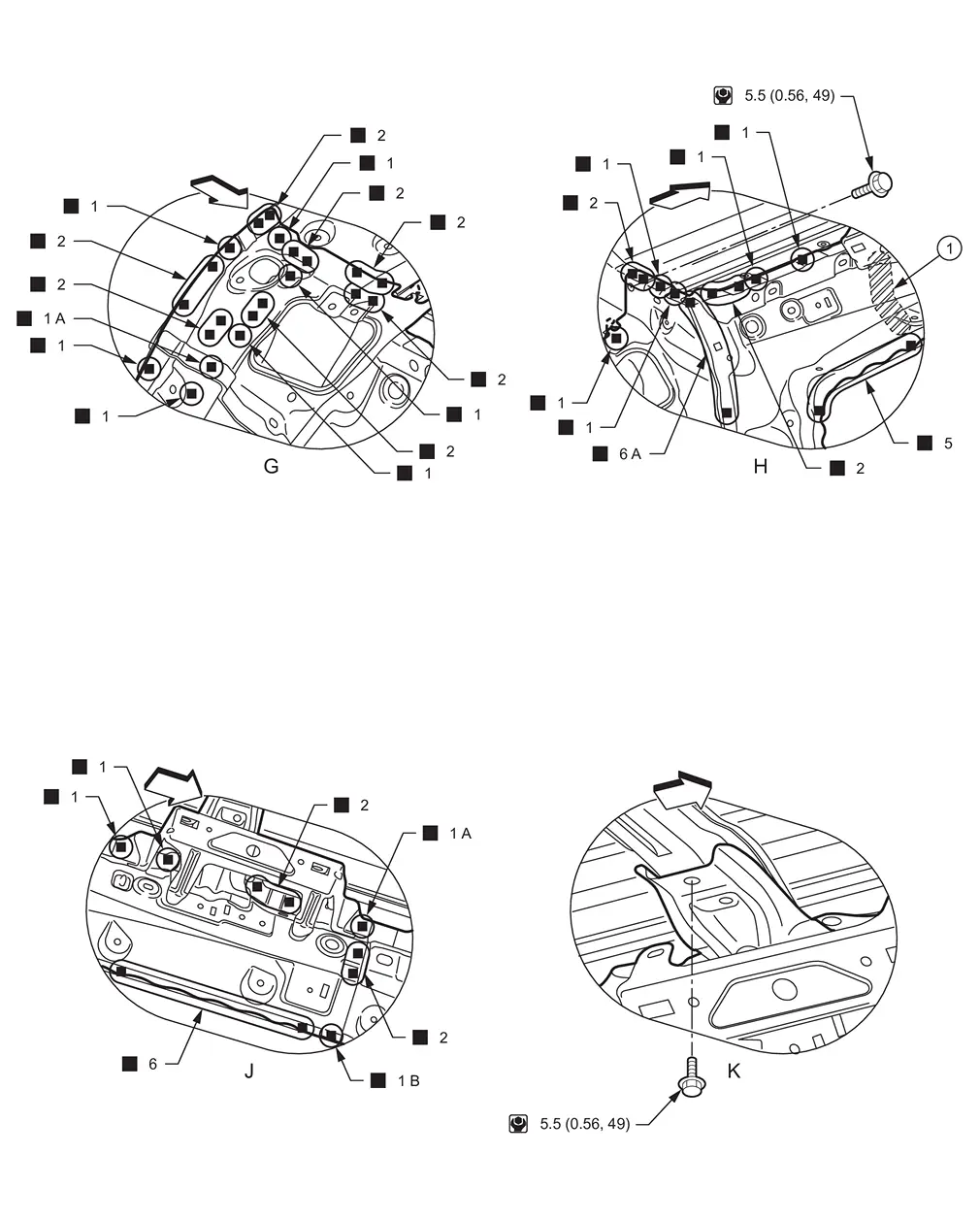

 | Urethane foam | ||||
 : Weld the parts onto the back of the component part. | |||||
| Replacement part | |||||
| • | Inner rear pillar | • | Inner back pillar | • | Inner rear side roof rail |
| • | Lower inner rear pillar | ||||
| Unit: mm (in) | |||||
 : N•m (kg-m, in-lb) | |||||
| Urethane foam | ||||
 : Vehicle front | |||||
| : N•m (kg-m, in-lb) | |||||
Inner Rear Pillar Reinforcement
WARNING:
Work after rear fender is removed.
Urethane foam Unit: mm (in) : Vehicle front
: Weld the parts onto the back of the component part. Replacement part • Inner rear pillar reinforcement ...
Back Pillar Reinforcement
WARNING:
Work after rear fender is removed.
Urethane foam Unit: mm (in) : Vehicle front Replacement part • Back pillar reinforcement
Urethane foam : Vehicle front : N•m (kg-m, in-lb) ...
