Nissan Armada 2025-2026 Service and Repair Manual: Inspection
INSPECTION AFTER REMOVAL
Surface Distortion

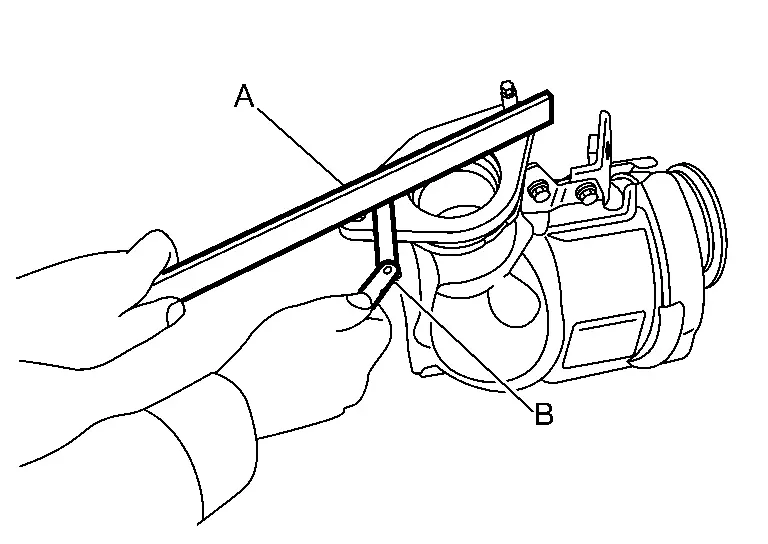

Check the surface distortion of the catalyst converter mating surface (turbocharger side) with a straigtedge (A) and a feeler gauge (B).
Limit 0.15 mm (0.0059 in)

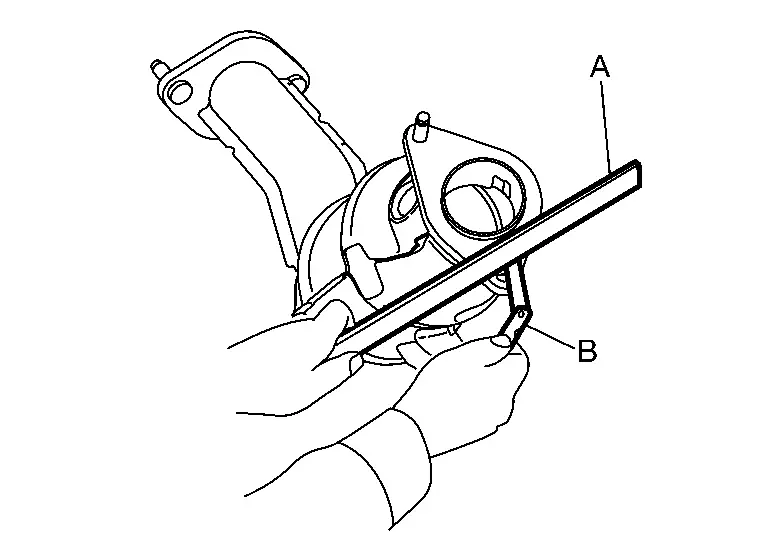

Check the surface distortion of the catalyst converter mating surface (2nd catalyst converter side) with a straigtedge (A) and a feeler gauge (B).
Limit 0.5 mm (0.020 in)

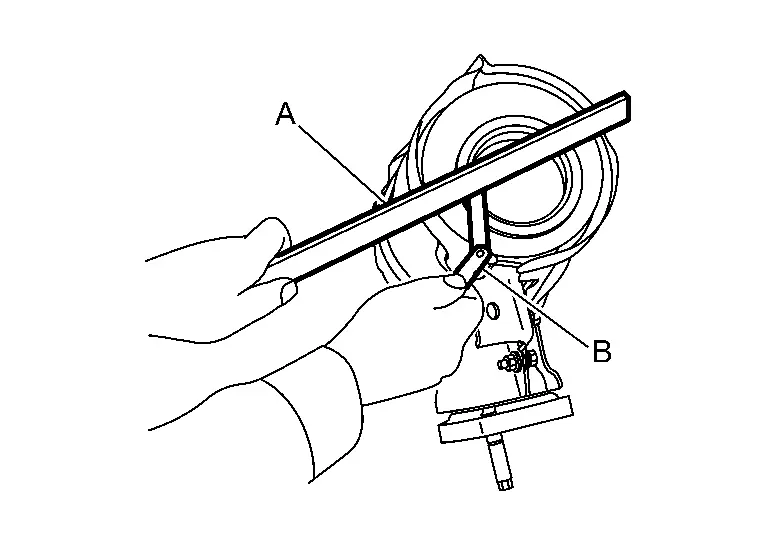

Check the surface distortion of the 2nd catalyst converter mating surface (catalyst converter side) with a straigtedge (A) and a feeler gauge (B).
Limit 0.5 mm (0.020 in)
