INSPECTION AFTER REMOVAL
Appearance
Propeller Shaft Runout
| Propeller shaft runout | : Refer to Propeller Shaft Tube. |
Journal Axial Play

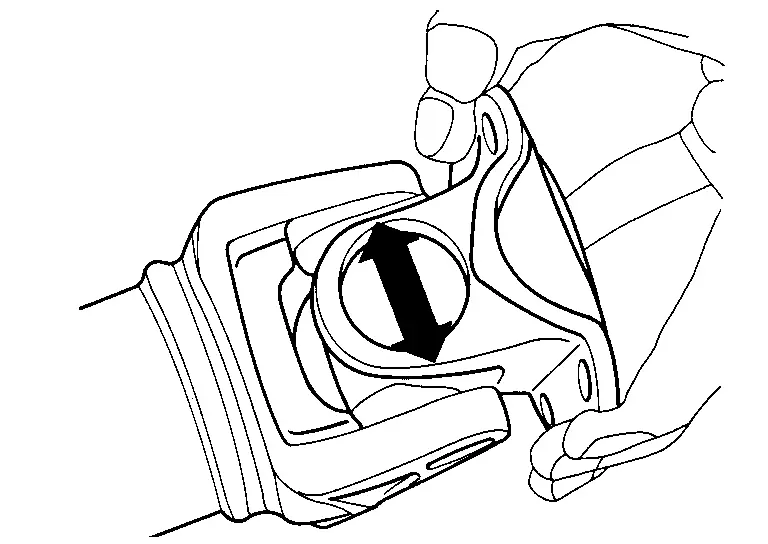

| Journal axial play | : Refer to Journal. |
Joint Flex Torque

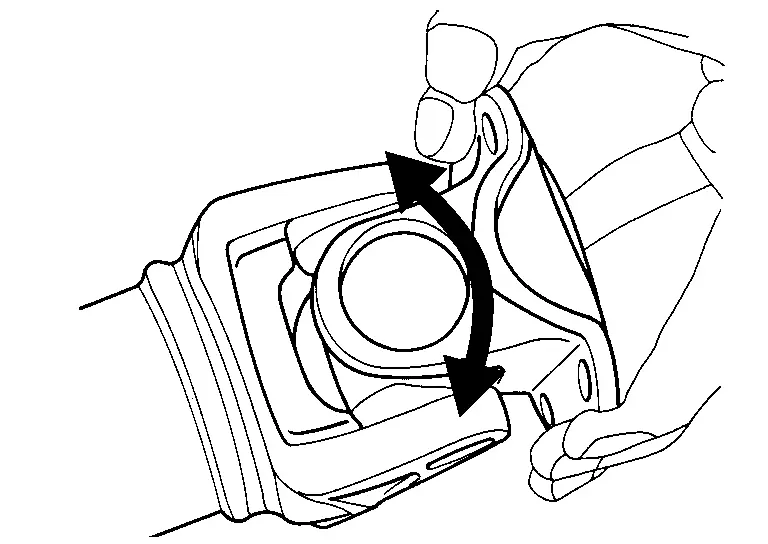

| Joint flex torque | : Refer to Journal. |
Center Bearing
Check center bearing for noise and damage. If malfunction is detected, replace propeller shaft assembly.
CAUTION:
Never disassemble center bearing.
INSPECTION AFTER INSTALLATION
Disassembly and Assembly
DISASSEMBLY
Put a matching mark between propeller shaft and flange yoke as shown.
CAUTION:
For matching mark, use paint. Never damage the surface.
Remove snap rings .
Lightly tap bottom of yoke us ...
