Nissan Armada 2025-2026 Service and Repair Manual: Inspection
WARNING:
INSPECTION
Uneven wear

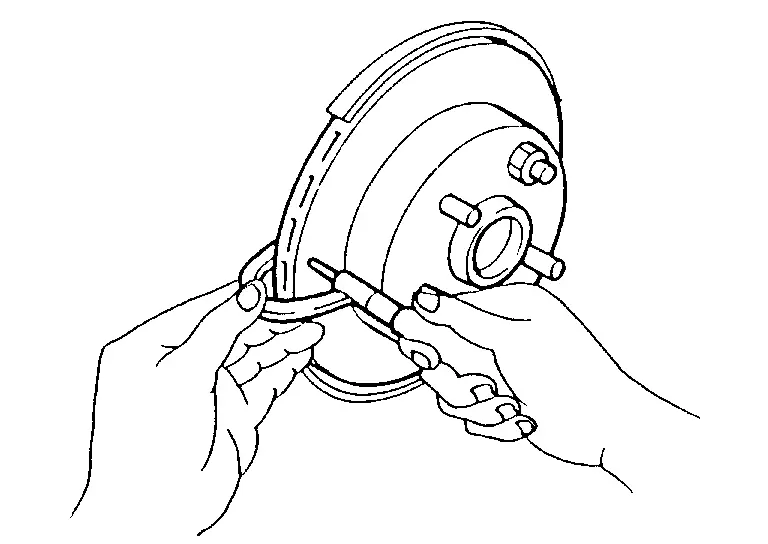

Check the uneven wear of the disc rotor using a micrometer. Replace the disc rotor if the thickness is below the wear limit. Refer to Removal and Installation.
| Thickness variation (measured at 8 positions) | : Refer to Rear Disc Brake. |
Disc Rotor
...
