Nissan Armada 2025-2026 Service and Repair Manual: Inspection and Adjustment
INSPECTION AFTER REMOVAL

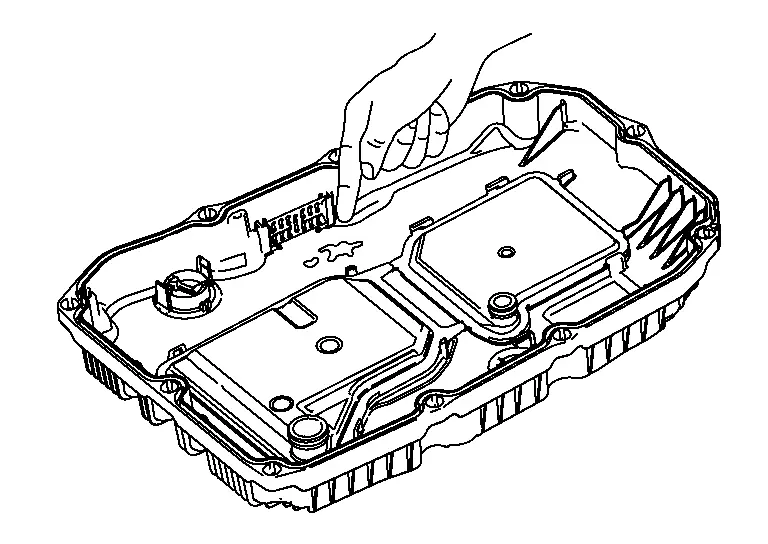

Check foreign materials in oil pan to help determine causes of malfunction. If the A/T fluid is very dark, smells burned, or contains foreign particles, the frictional material (clutches) may need replacement. A tacky film that will not wipe clean indicates varnish build up. Varnish can cause valves and clutches to stick and can inhibit pump pressure.
If frictional material is detected, perform A/T fluid cooler cleaning. Refer to Cleaning.
INSPECTION AFTER INSTALLATION
Start the engine and check visually that there is no leakage of A/T fluid.
ADJUSTMENT AFTER INSTALLATION
When replaced the control valve & TCM, perform “ADDITIONAL SERVICE WHEN REPLACING CONTROL VALVE & TCM”. Refer to Description.
Removal and Installation
WARNING:
REMOVAL
Remove oil pan. Refer to Removal and Installation.
Remove heat shield mounting bolts () and heat shield .
Disconnect harness connector from control valve & TCM.
NOTE:
Rotate ...
