Nissan Armada 2025-2026 Service and Repair Manual: Lubricant Adjusting Procedure for A/C compressor Replacement

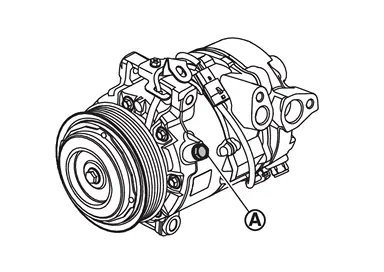

Drain lubricant from removed A/C compressor and measure lubricant amount.Remove drain bolt
, and then drain lubricant from drain port while rotating magnet clutch.

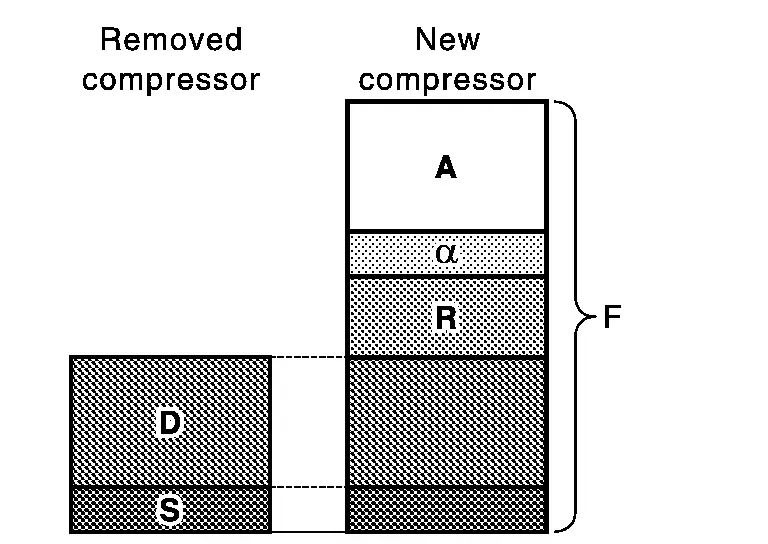

Drain lubricant from a new A/C compressor that is calculated according to the following conditions.
Amount to be drained (A) [m (US fl oz, Imp fl oz)] = F − (D + S + R + α) | |
| F | : Lubricant amount that a new A/C compressor contains [150 (5.1, 5.3)] |
| D | : Lubricant amount that is drained from removed A/C compressor |
| S | : Lubricant amount that remains inside of removed A/C compressor [20 (0.7, 0.7)] |
| R | : Lubricant amount to be added according to components that are removed except A/C compressor |
| α | : Lubricant amount that is recycled together with refrigerant during recycle operation |
CAUTION:
If lubricant amount that is drained from removed A/C compressor is less than 40 m (1.4 US fl oz, 1.4 Imp fl oz), perform calculation by setting “D” as 40 m (1.4 US fl oz, 1.4 Imp fl oz).
| Conditions | Lubricant amount to be added to A/C system m (US fl oz, Imp fl oz) | |
|---|---|---|
| Replace evaporator | Front | 45 (1.5, 1.6) |
| Rear | 25 (0.8, 0.9) | |
| Replace condenser & liquid tank | 45 (1.5, 1.6) | |
Example: Lubricant amount to be drained from a new A/C compressor when replacing A/C compressor and condenser & liquid tank [m (US fl oz, Imp fl oz)] [D = 60 (2.0, 2.1), α = 5 (0.2, 0.2)]
150 (5.1, 5.3) − [60 (2.0, 2.1) + 20 (0.7, 0.7) + 45 (1.5, 1.6) + 5 (0.2, 0.2)] = 20 (0.7, 0.7)
Tighten drain bolt to the specified torque.
| Specified torque | : 30 N·m (3.1 kg-m, 22 ft-lb) |
Install A/C compressor and check the operation.
Lubricant Adjusting Procedure for Components Replacement Except A/C compressor
Fill with lubricant for the amount that is calculated according to the following conditions.
Example: Lubricant amount to be added when replacing evaporator (front) and condenser & liquid tank [m ...
Performance Test
...
