Nissan Armada 2025-2026 Service and Repair Manual: Mult-functional Type Spot Welder

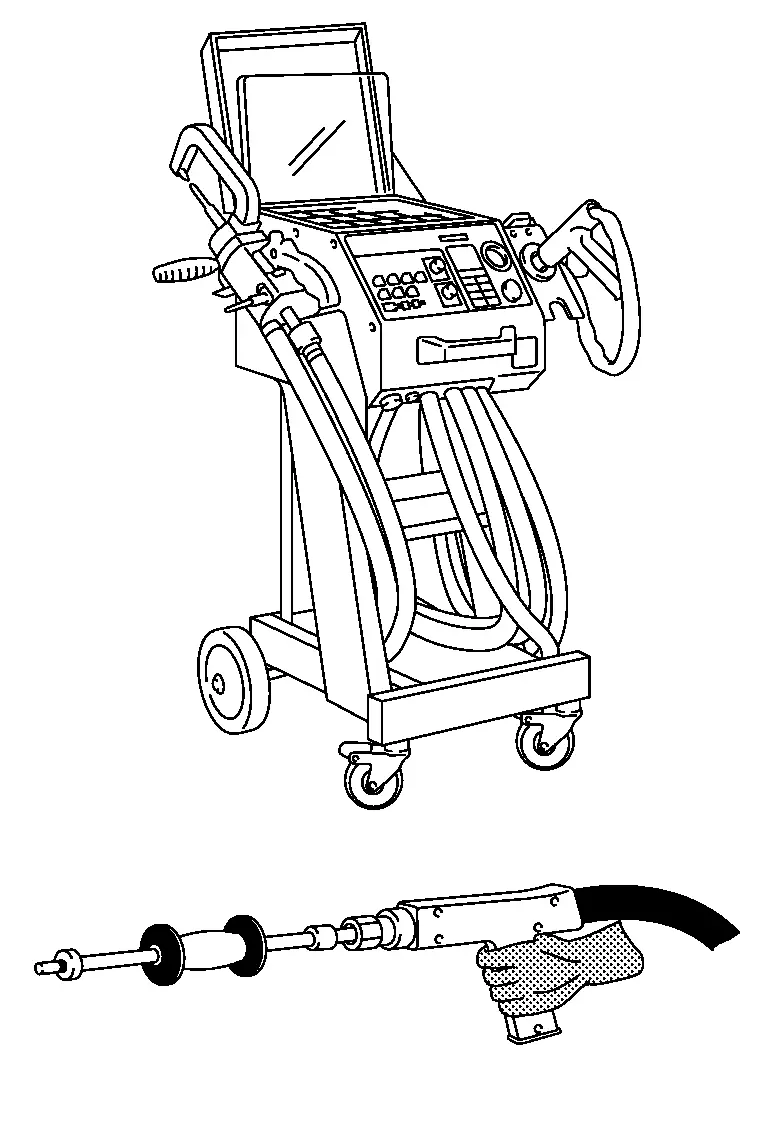

In addition to the ordinary spot welding function, sheet metal can be pulled with the sliding hammer.
Major functions:
Both sided spot welding
One sided spot welding (Pre tack welding)
Spot hammer welding
Nuts and bolts welding
Carbon shrinking
Contact shrinking
Washer and pin or stud welding
Spot Welding Gun
(1) TYPES OF CLAMP
NOTE:
Manual Clamp Type welders don’t apply enough pressure.
(2) ATTACHMENT ARM
In spot welding, 2 or 3 panels to be welded must be clamped directly at electrodes. Therefore, the ...
Process of Spot Welding
It takes 3 processes, “pressurization”, “energization”, and “retention”, to complete the spot welding.
(1) PRESSURIZATION
The welding points of overlapped panels are pressurized with the t ...
