Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
CAUTION:
REMOVAL
Fully open back door.
Apply protective tape (A) on the part to protect it from damage.

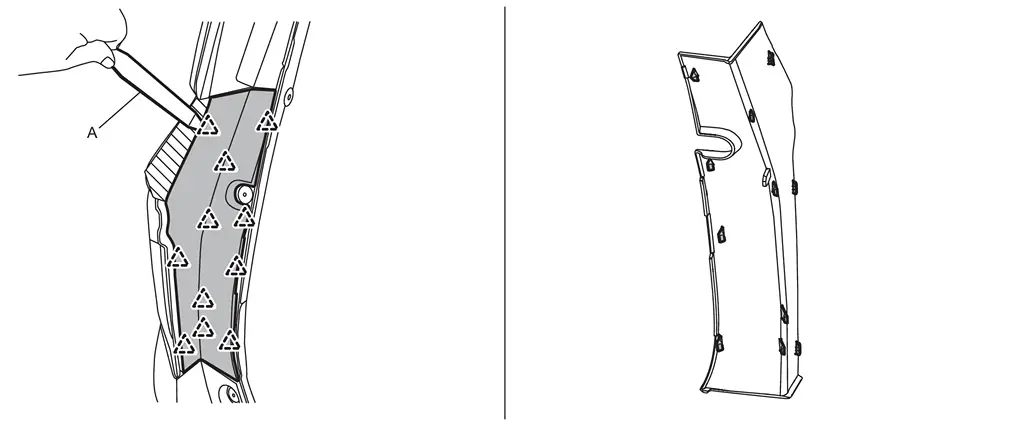

Disengage rear combination lamp cover fixing pawls using a remover tool (A), and then remove rear combination lamp cover.
 | : Pawl |
Remove rear combination lamp mounting bolts
.
Apply protective tape (A) on the part to protect it from damage.
Disengage combination lamp fixing clips using a remover tool (A).
 | : Clip |

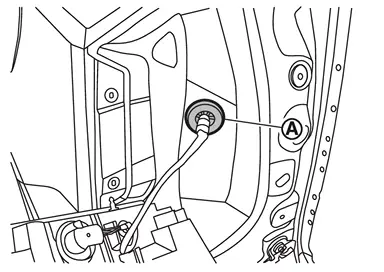

Remove grommet .

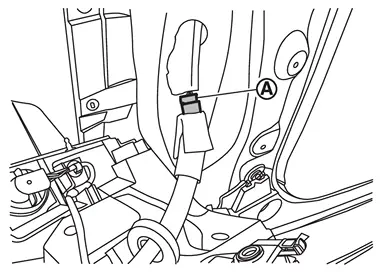

Disconnect rear combination lamp harness connector .
Remove rear combination lamp.
INSTALLATION
Note the following item, and then install in the reverse order of removal.
CAUTION:
Exploded View
Grommet Rear combination lamp Rear combination lamp cover : Clip : Pawl : N·m (kg-m, in-lb) ...
Replacement
CAUTION:
TAIL LAMP/STOP LAMP
CAUTION:
Replacement of a single part is not possible due to the adoption of LED. For replacement, replace rear combination lamp as a set. Refer to Removal and Installatio ...
