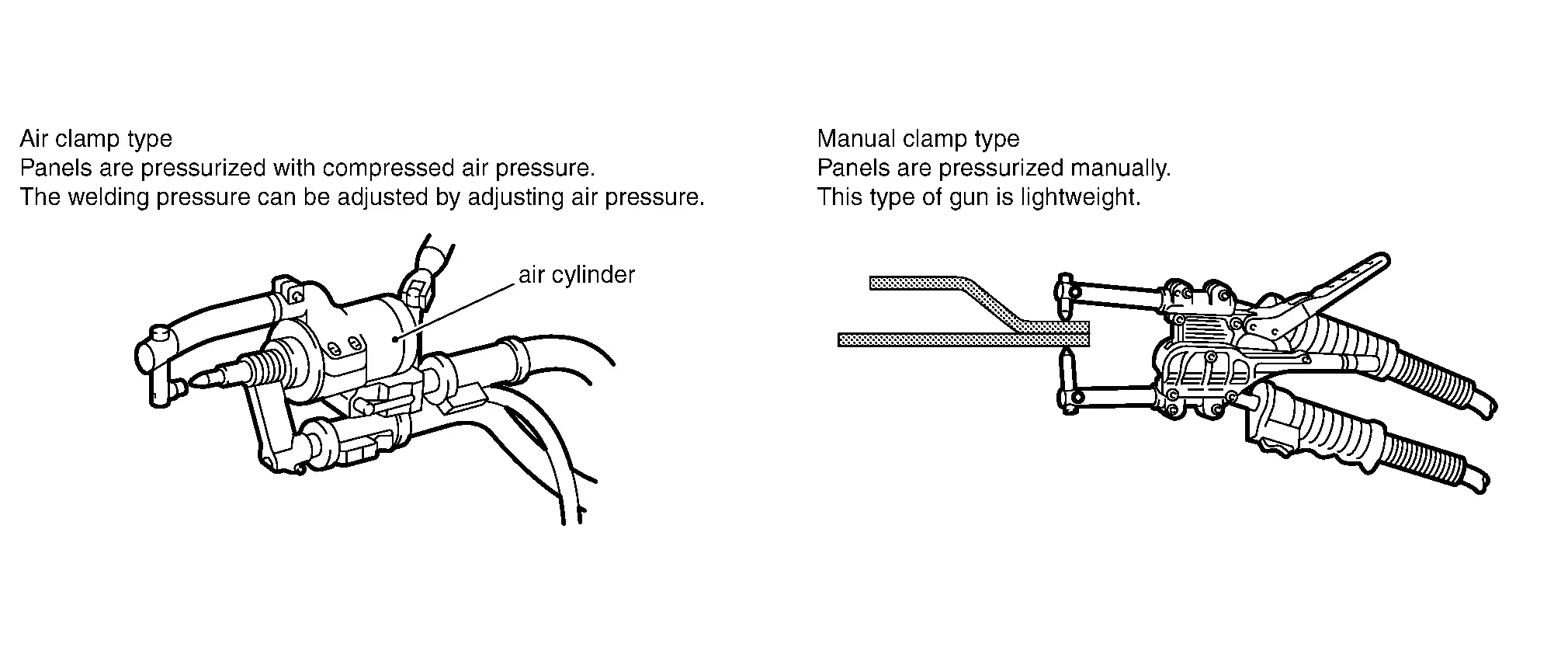

(1) TYPES OF CLAMP
NOTE:
Manual Clamp Type welders don’t apply enough pressure.

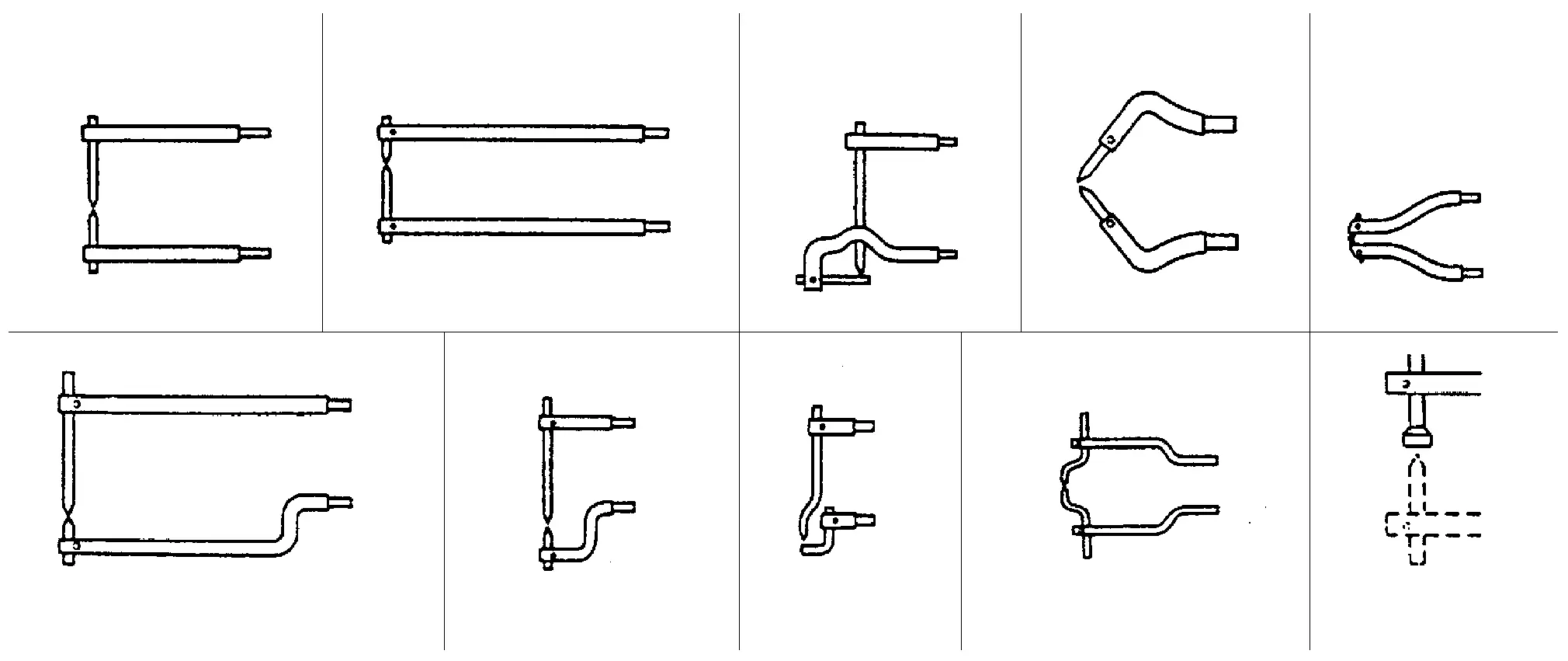

(2) ATTACHMENT ARM
In spot welding, 2 or 3 panels to be welded must be clamped directly at electrodes. Therefore, the disadvantage of spot welding is that there are some points at which welding cannot be performed.
In order to make up for this weakness, various types of attachment arms have been created.

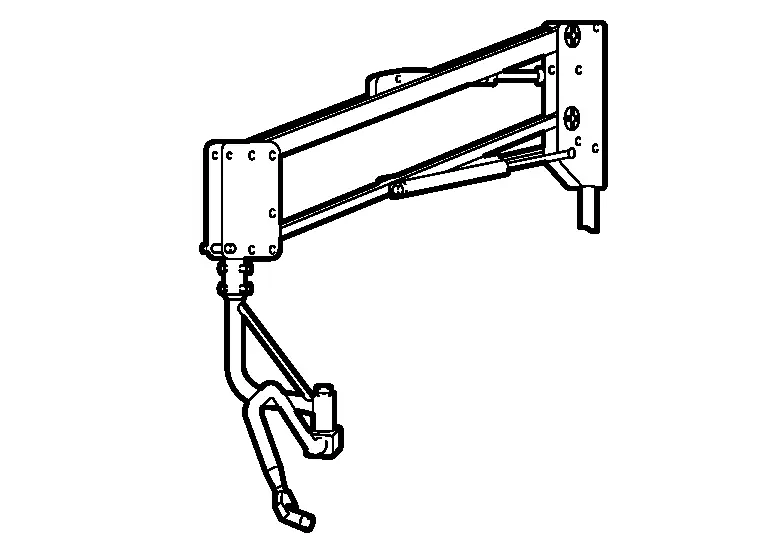

(3) HANGING UNIT
The weight of guns, arms and cables has been reduced to minimize the burden on workers.
Depending on the unit type, the cable can simply be hung, or the gun can be hung with a cylinder.
Cooling Methods
Air cooling: Forced air cooling with fan
Water cooling: Cooling by circulating the water
...
Mult-functional Type Spot Welder
In addition to the ordinary spot welding function, sheet metal can be pulled with the sliding hammer.
Major functions:
Both sided spot welding
One sided spot welding (Pre tack welding)
Spot hammer we ...
