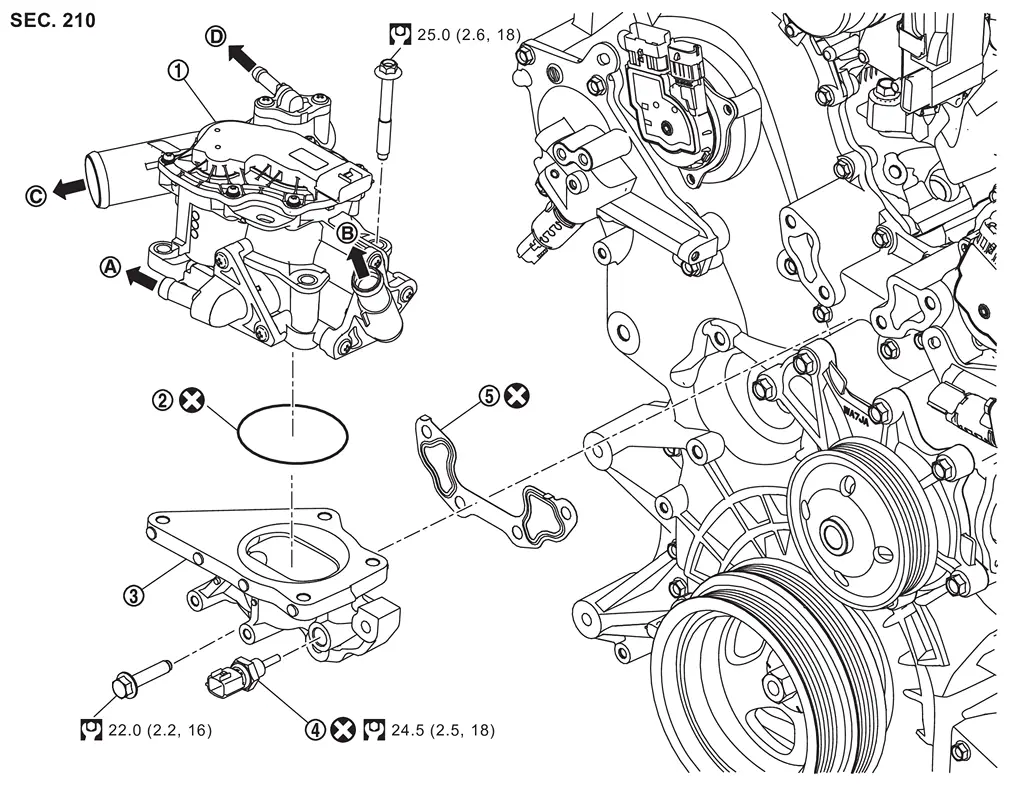

Nissan Armada 2025-2026 Service and Repair Manual: MULTI-WAY CONTROL VALVE : Exploded View
 | Multi-way control valve |  | O-ring |  | Water outlet |
 | Engine coolant temperature sensor 1 |  | Gasket | ||
 | To oil cooler hose 1. Refer to Exploded View. |  | To electric water pump. Refer to Exploded View. |  | To radiator. Refer to RADIATOR : Exploded View. |
 | To electric throttle control actuator. Refer to Exploded View. | ||||
 | : N·m (kg-m, ft-lb) | ||||
 | : Always replace after every disassembly. |
MULTI-WAY CONTROL VALVE : Removal & Installation
WARNING:
REMOVAL
Remove engine cover. Refer to Removal and Installation.
Remove front under cover using a power tool. Refer to Removal and Installation.
Drain engine coolant. Refer to ENGINE COOLANT ...
