Nissan Armada 2025-2026 Service and Repair Manual: Rear Floor Rear
WARNING:

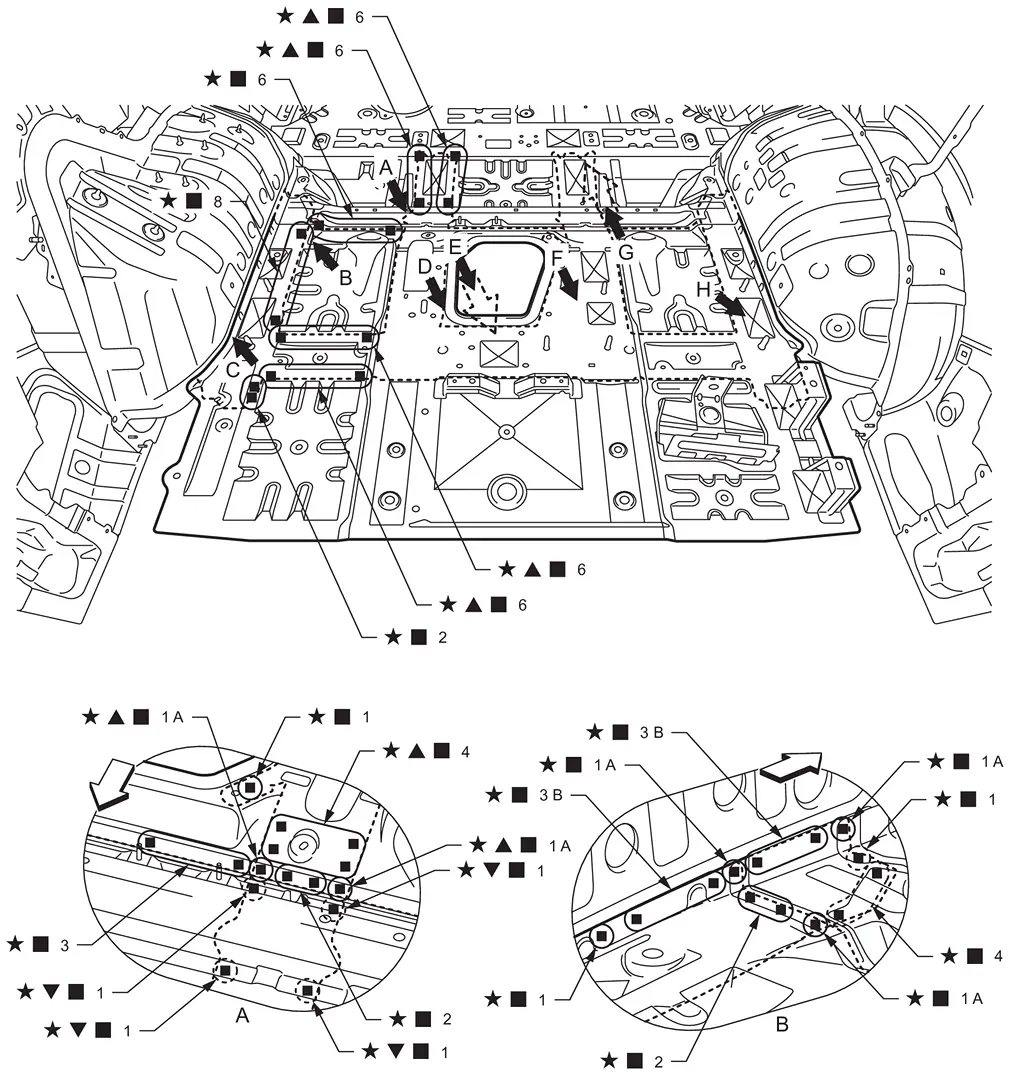

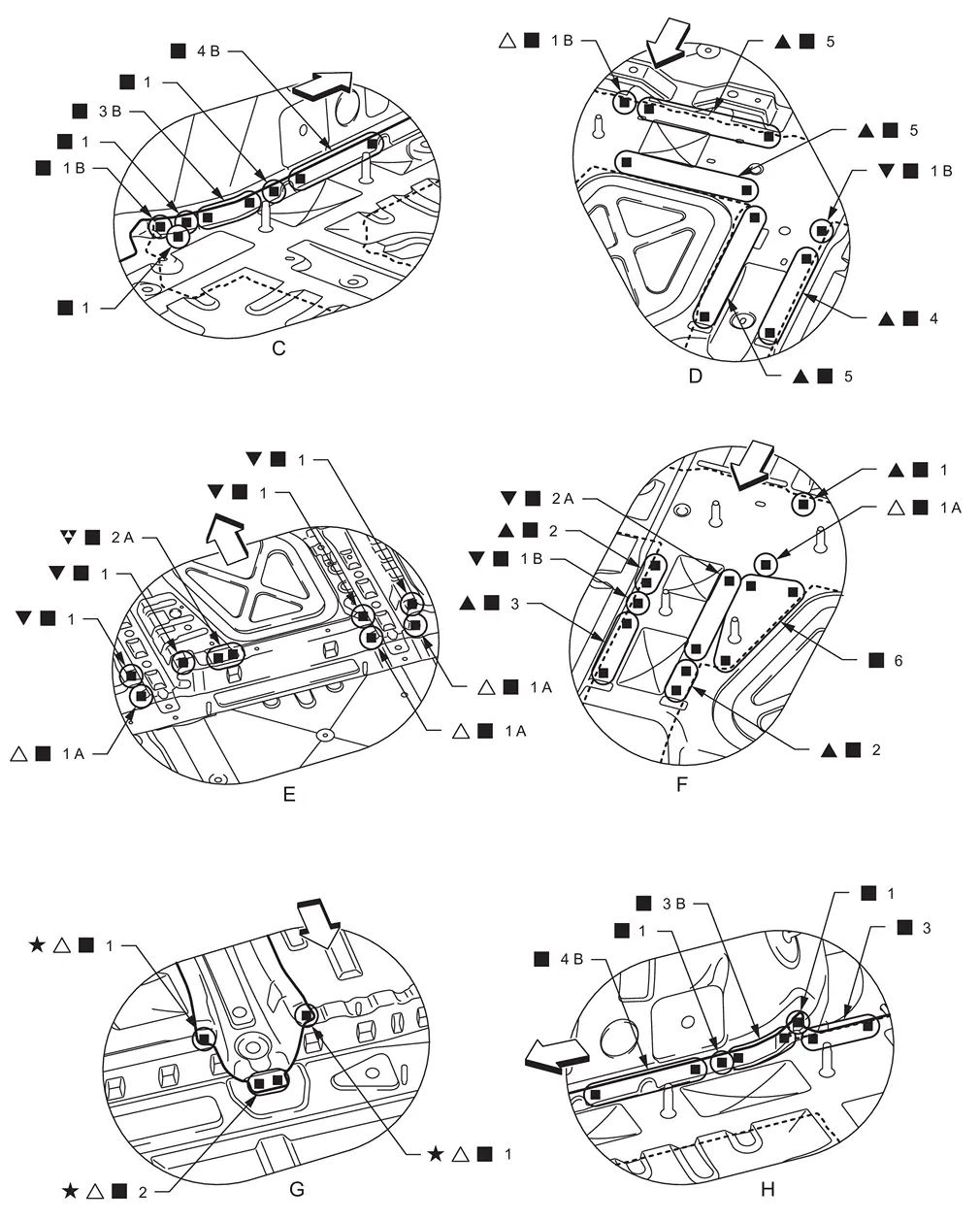

WITH ProPILOT Assist 2.1 MODELS
Work after rear end crossmember is removed.
 : Vehicle front | |||||
 : Drill φ6 mm (0.24 in) hole for the plug welding hole (ultra high strength steel). | |||||
 : Drill φ7 mm (0.28 in) hole for the plug welding hole (ultra high strength steel). | |||||
 : Weld the parts onto the back of the component part. | |||||
 : Welding method and the number of welding points apply to both sides of the vehicle. | |||||
| Replacement part | |||||
| • | Rear floor rear | • | Rear side member | • | 3rd rear crossmember assembly |
| : Vehicle front | |||||
| : Drill φ6 mm (0.24 in) hole for the plug welding hole (ultra high strength steel). | |||||
| : Drill φ7 mm (0.28 in) hole for the plug welding hole (ultra high strength steel). | |||||
 : Drill φ8 mm (0.31 in) hole for the plug welding hole (ultra high strength steel). | |||||
 : Drill φ11 mm (0.43 in) hole for the plug welding hole (ultra high strength steel). | |||||
| : Welding method and the number of welding points apply to both sides of the vehicle. |

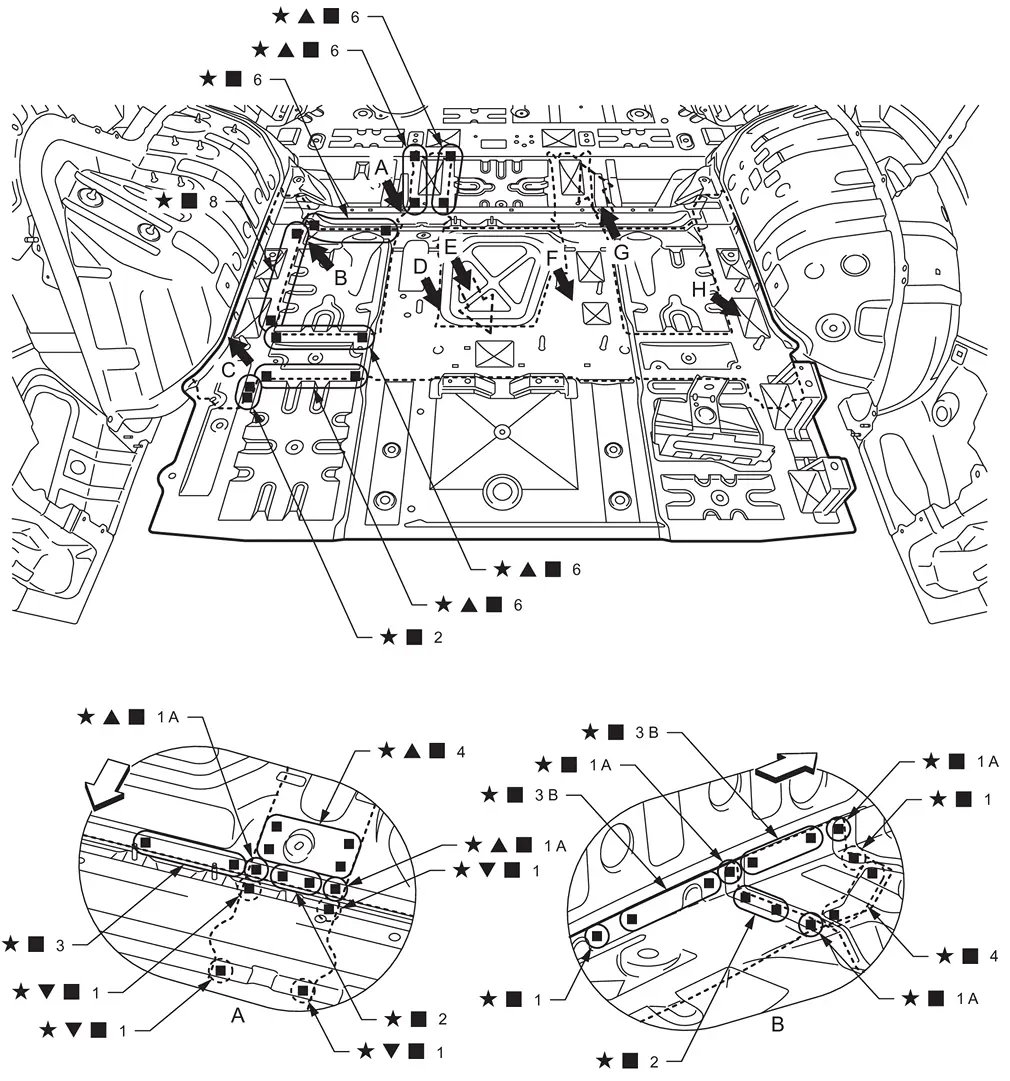

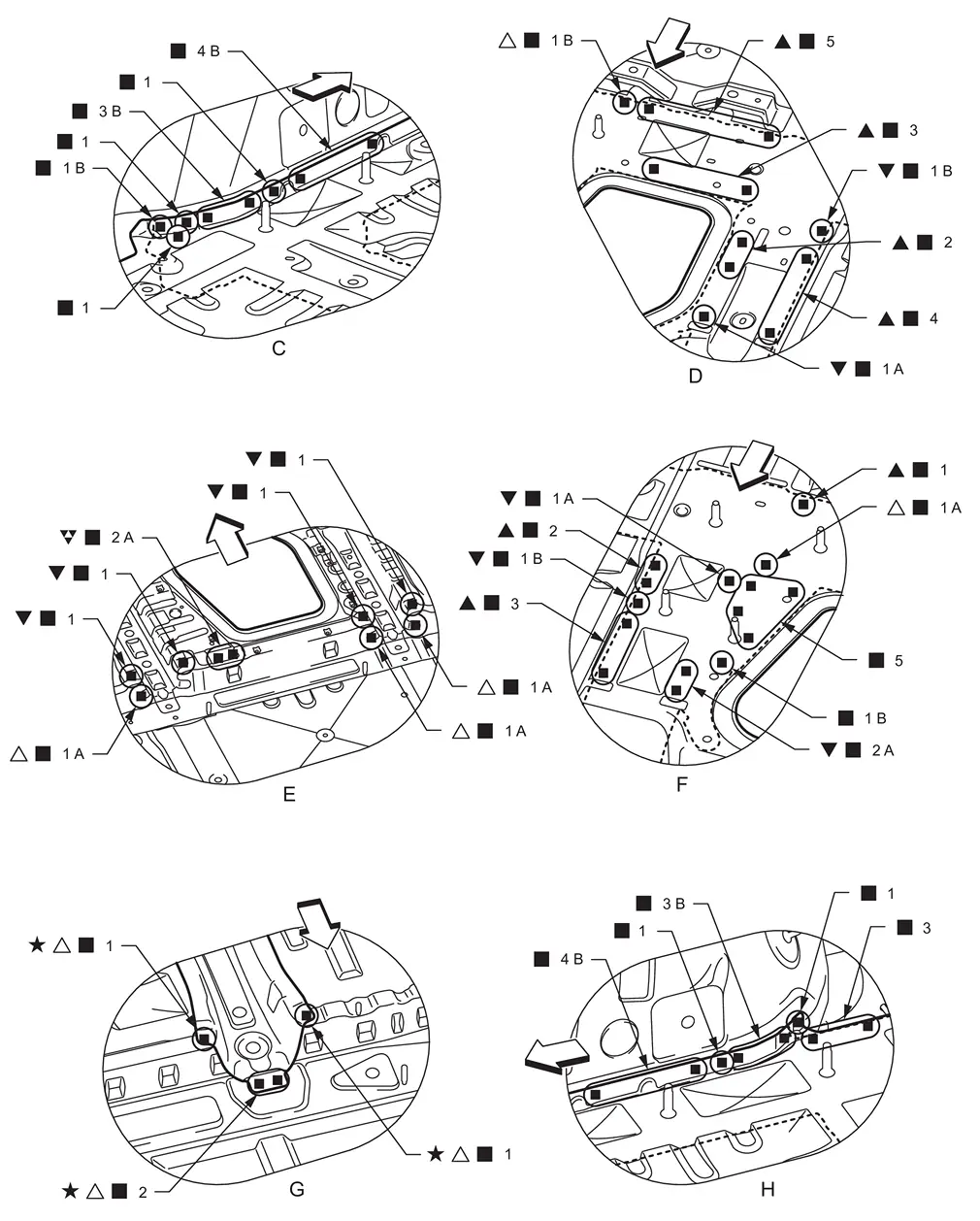

WITHOUT ProPILOT Assist 2.1 MODELS
Work after rear end crossmember is removed.
| : Vehicle front | |||||
| : Drill φ6 mm (0.24 in) hole for the plug welding hole (ultra high strength steel). | |||||
| : Drill φ7 mm (0.28 in) hole for the plug welding hole (ultra high strength steel). | |||||
| : Weld the parts onto the back of the component part. | |||||
| : Welding method and the number of welding points apply to both sides of the vehicle. | |||||
| Replacement part | |||||
| • | Rear floor rear | • | Rear side member | • | 3rd rear crossmember assembly |
| : Vehicle front | |||||
| : Drill φ6 mm (0.24 in) hole for the plug welding hole (ultra high strength steel). | |||||
| : Drill φ7 mm (0.28 in) hole for the plug welding hole (ultra high strength steel). | |||||
| : Drill φ8 mm (0.31 in) hole for the plug welding hole (ultra high strength steel). | |||||
| : Drill φ11 mm (0.43 in) hole for the plug welding hole (ultra high strength steel). | |||||
| : Welding method and the number of welding points apply to both sides of the vehicle. |
