Nissan Armada 2025-2026 Service and Repair Manual: Tracking Gauge and Steel Tape
Measure the distance between two points. Before using the tracking gauge, check the measuring points with the steel tape.
(1) TRACKING GAUGE

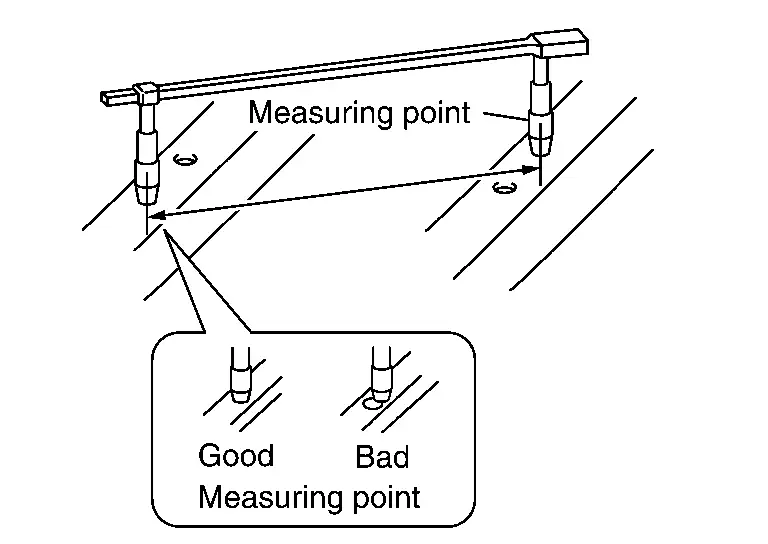

Fit the tracking gauge correctly to the measuring point.
The dimension is indicated between the hole center.
If measurement is unavailable, use the method shown below.
(2) STEEL TAPE

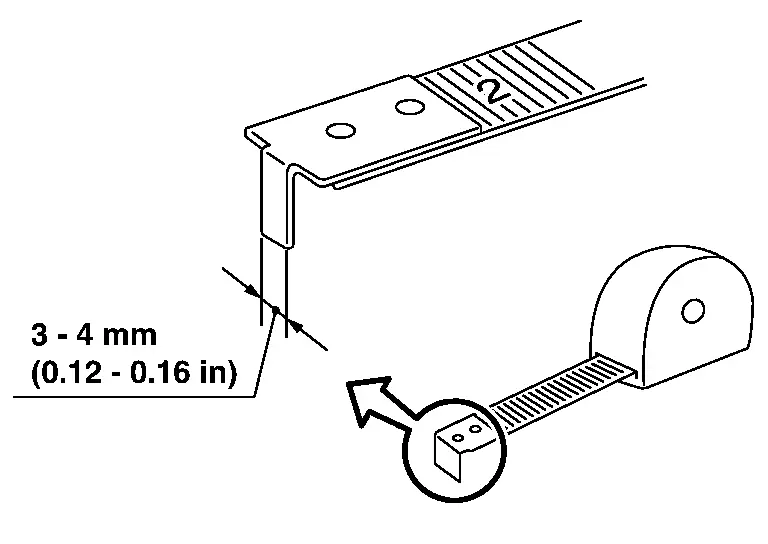

Shape the end of the rule for ease of measurement.

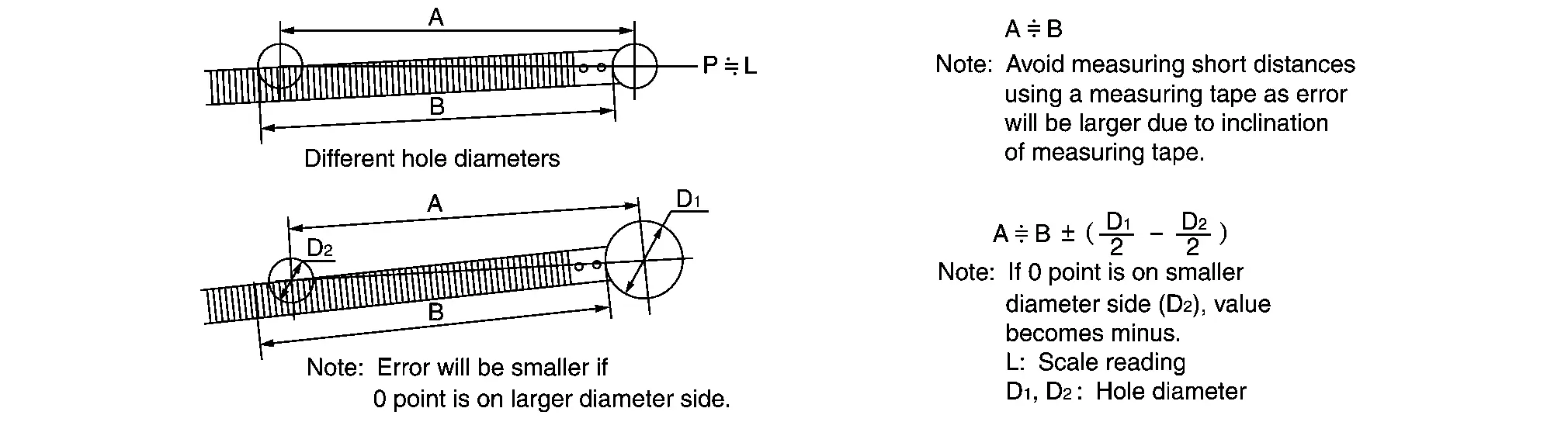

If the measuring point hole diameter is different, use the following measuring method.
Checking Damage
When completing body and frame repairs, the front body and underbody dimensions must be correct, because these dimensions directly affect wheel alignment and steering angles.
The degree of damage shou ...
Three-dimensional Measuring Equipment
The equipment has function of the measurement to display the vehicle measuring points in three dimensions: height, width and length.
(1) UNIVERSAL JIG TYPE
This is one of the universal jig type body s ...
