Nissan Armada 2025-2026 Service and Repair Manual: Disassembly and Assembly
DISASSEMBLY
Put a matching mark between propeller shaft and flange yoke as shown.
CAUTION:
For matching mark, use paint. Never damage the surface.
Remove snap rings
.
Lightly tap bottom of yoke using a copper hammer and remove journal bearing.
CAUTION:
Never damage the yoke.
ASSEMBLY
Install journal bearing to journal.
CAUTION:
Never reuse journal and journal bearing.
Always replace journal, journal bearing, and snap rings as a set.
Apply multi-purpose grease to journal bearing.
Install bearing
using a vise.
CAUTION:
Never damage bearing or flange yoke.

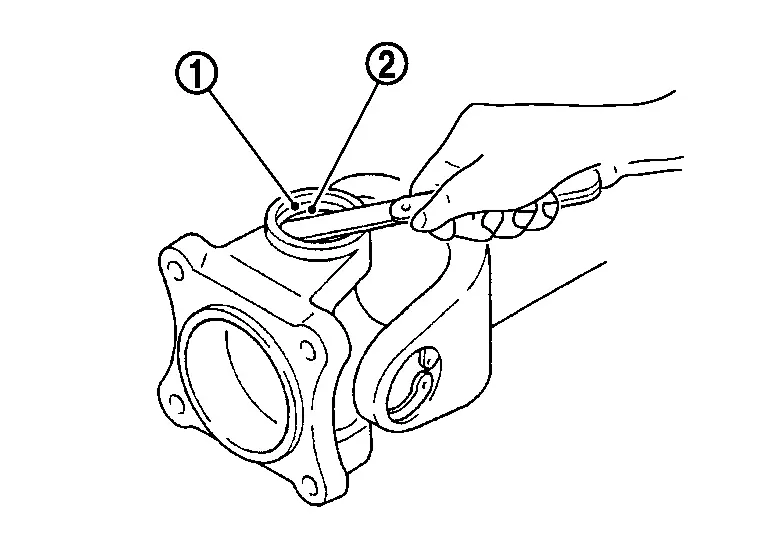

Measure journal axial play. If necessary, select the appropriate snap ring.While pushing to 98 N·m (10 kg-m, 72 ft-lb), check the clearance between snap ring and needle bearing
.
| Journal axial play | : Refer to Journal. |
CAUTION:
Never reuse snap ring.
Select snap rings with a difference in thickness at both sides within 0.02 mm (0.0008 in). For selecting snap ring, refer to the latest parts information.
Install snap rings .
| Joint flex torque | : Refer to Journal. |
NOTE:
The joint flex torque may not be satisfied soon after the assembly.
Check the journal axial play. Refer to Inspection.
