Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
REMOVAL
WARNING:
CAUTION:
Never disassemble the front height sensor.
Start engine.
Turn OFF the electronic air suspension function. Refer to Operation.
Stop engine.
Lift up the vehicle.
Disconnect front height sensor harness connector.
Remove front height sensor.
INSTALLATION
Note the following, and install in the reverse order of the removal.

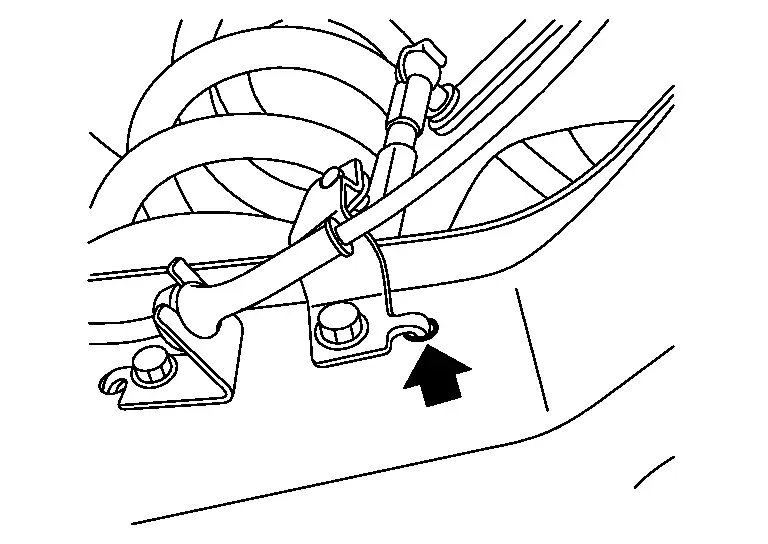

Completely engage hooks on frame when installing front height sensor.
Perform inspection after installation. Refer to Inspection.
Perform adjustment after installation. Refer to Adjustment.
Exploded View
Front height sensor :Vehicle front :N·m (kg-m, ft-lb) :N·m (kg-m, in-lb) ...
Inspection
INSPECTION AFTER INSTALLATION
Confirm to close the hood.
...
