Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
WARNING:
Always observe the following items for preventing accidental activation.
Always work from the side of air bag module. Never work in front of it.
Never use air tools or electric tools for servicing.
REMOVAL
Remove headlining assembly. Refer to Removal and Installation.

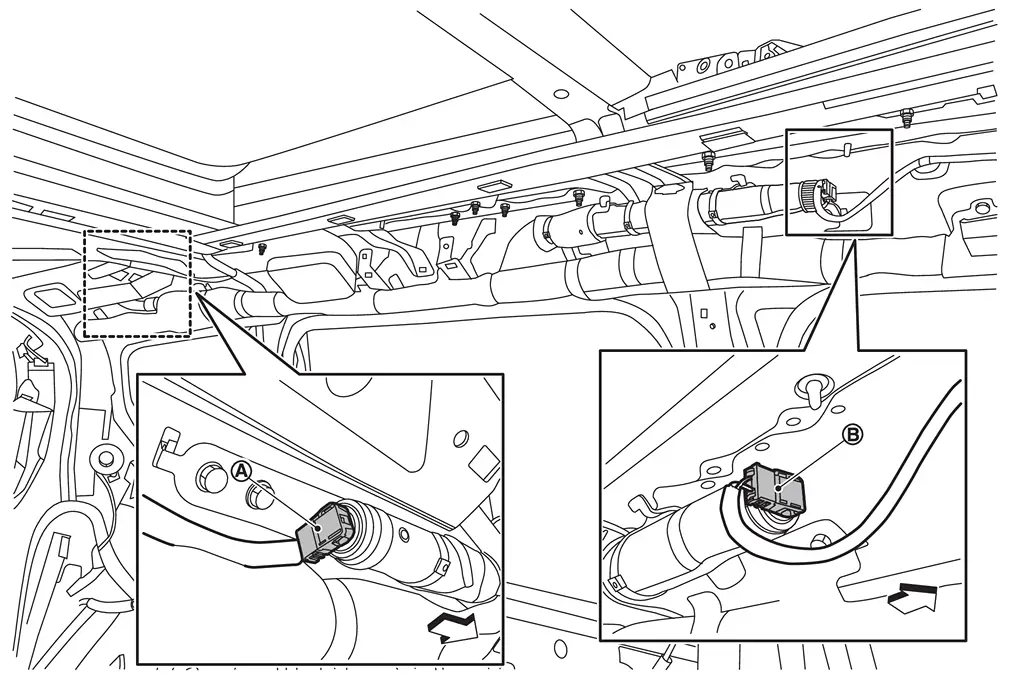

Disconnect curtain air bag module harness connectors
and
.
 | : Vehicle front |
CAUTION:
Never damage harness connector.
Remove curtain air bag module mounting bolts.
Remove bracket part of curtain air bag module from vehicle, and then remove curtain air bag module.
CAUTION:
To prevent damage to the parts, never impact the curtain air bag module.
Replace curtain air bag module if it is dropped or sustains an impact.
To prevent accidental explosion, never insert any foreign objects (screwdriver, etc.) into the curtain air bag module.
To prevent accidental explosion, never disassemble the curtain air bag module.
To prevent accidental explosion, never expose the curtain air bag module to temperatures of more than 90°C (194°F).
To prevent damage to the parts, never allow oil, grease, detergent, or water to come in contact with the curtain air bag module.
INSTALLATION
Note the following items, and then install in the reverse order of removal.
CAUTION:

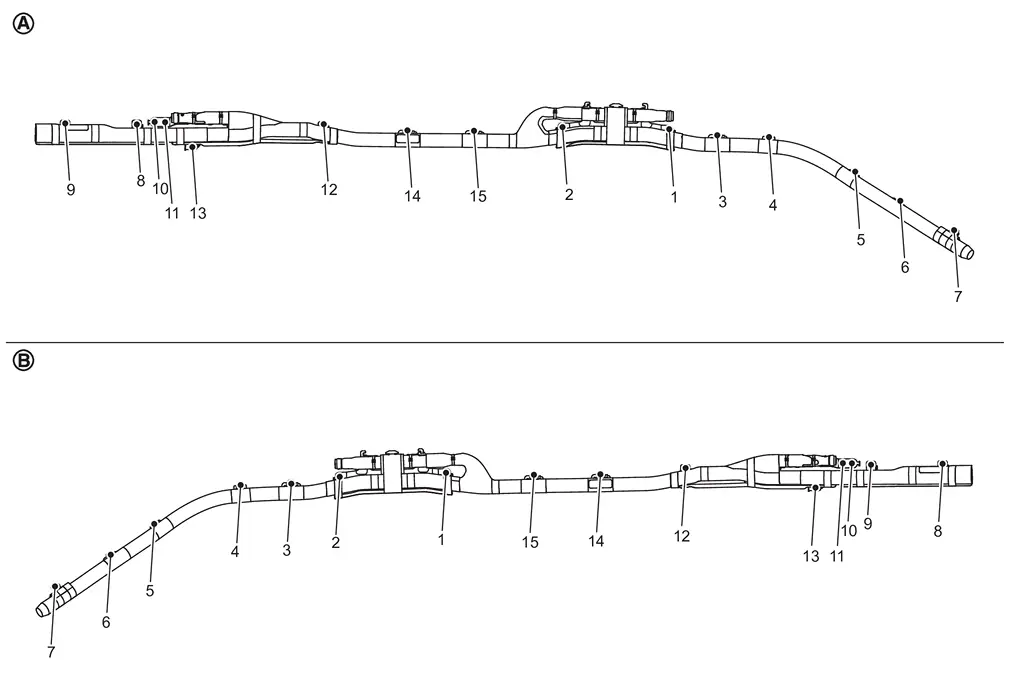

When installing, tighten mounting bolts according to numerical order as shown in figure.
: Left side : Right side Never damage the harness while installing.
When connect curtain air bag harness connector, press harness connector until clicking sound.
After installing the connector, check that the lock is pushed securely into it.
Exploded View
Curtain airbag module : N·m (kg-m, ft-lb) ...
