Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
REMOVAL
CAUTION:
When removing, always use a remover tool that is made of plastic.
Side Ventilator Grille LH
Remove instrument finisher A. Refer to Removal and Installation.
Remove side ventilator grille LH.Disengage fixing pawls.
 | : Pawl |
| : Pawl |
Side Ventilator Grille RH
Remove instrument finisher B. Refer to Removal and Installation.

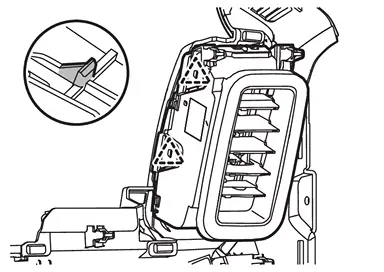

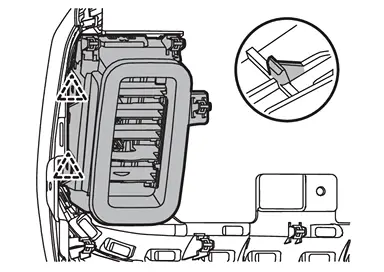

Remove side ventilator grille RH.Disengage fixing pawls.
| : Pawl |
| : Pawl |
INSTALLATION
Install in the reverse order of removal.
