Nissan Armada 2025-2026 Service and Repair Manual: Draining
WARNING:
The ignition switch OFF.
Remove engine under cover. Refer to Exploded View.

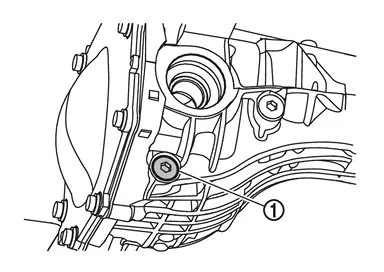

Remove drain plug
and gasket.
Drain gear oil.
Set a gasket on drain plug and install it to final drive assembly.
CAUTION:
Never reuse gasket.
Tighten drain plug to the specified torque. Refer to Exploded View.
Install engine under cover. Refer to Exploded View.
Inspection
WARNING:
OIL LEAKAGE
Make sure that oil is not leaking from final drive assembly or around it.
OIL LEVEL
Remove engine under cover. Refer to Exploded View.
Check oil level from filler plug mounting ho ...
Refilling
WARNING:
Remove engine under cover. Refer to Exploded View.
Remove filler plug and gasket. Then fill with new gear oil until oil level reaches the specified level near filler plug mounting hole.
...
