Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
REMOVAL
Remove front heater & cooling unit assembly. Refer to Removal and Installation.

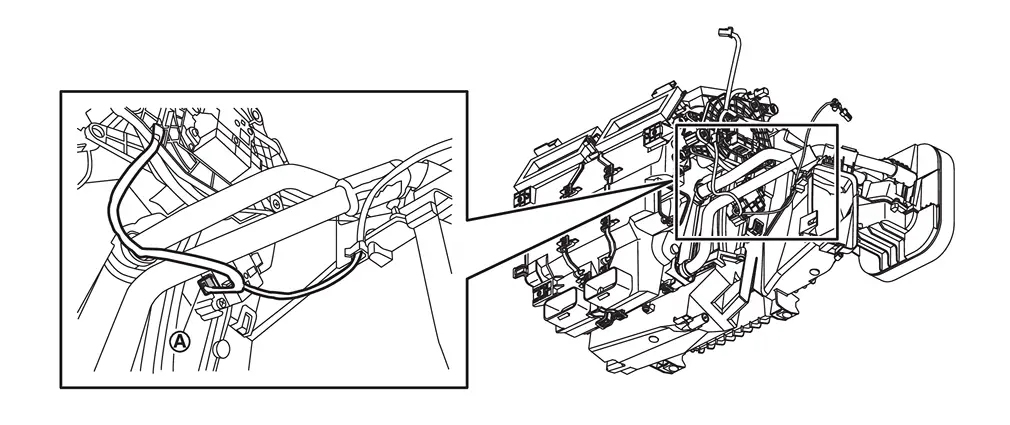

Disconnect front air mix door motor (passenger side) harness connector
.

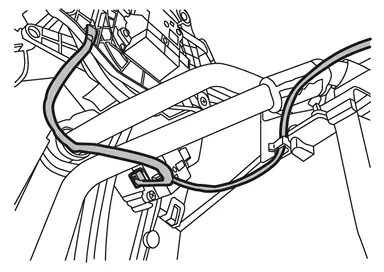

Remove sub harness from front case lower assembly.
Remove cooler packing.
Remove fixing screws , and then remove heater pipe support.

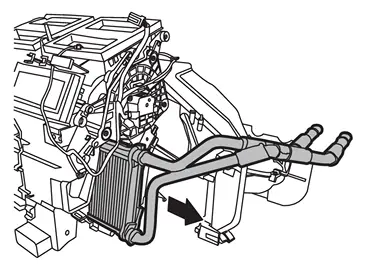

Remove front heater core.
INSTALLATION
Note the following item, and then install in the reverse order of removal.
CAUTION:
Replace cooler packing with new one.
