Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
REMOVAL
Remove instrument lower panel LH. Refer to Removal and Installation.

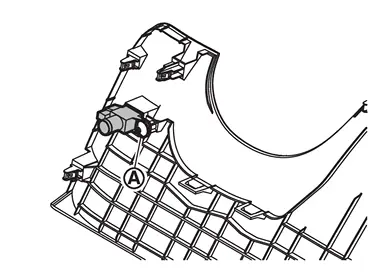

Remove fixing screw
, and then remove front in-vehicle sensor.
Remove aspirator duct from front heater & cooling unit assembly.
INSTALLATION
Install in the reverse order of removal.
