Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
REMOVAL
Remove front grille upper. Refer to the following.
Off road models: Removal and Installation
City models: Removal and Installation

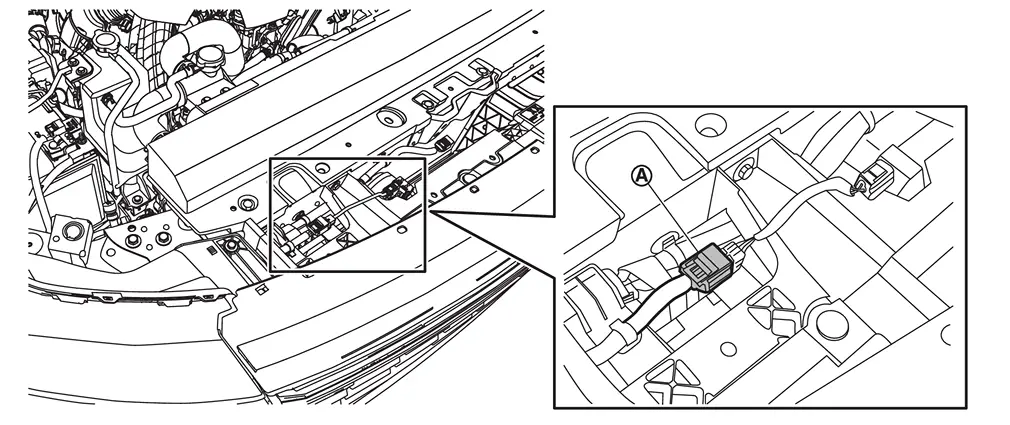

Disconnect exhaust gas/outside odor detecting sensor harness connector
.

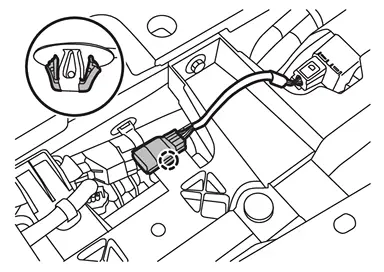

Disengage fixing clip, and then remove exhaust gas/outside odor detecting sensor harness connector.
 | : Clip |

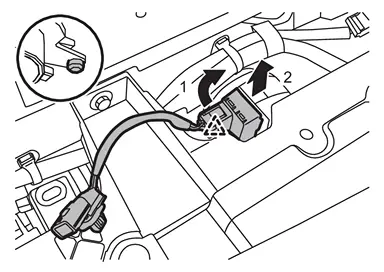

Disengage fixing pawl and turn the exhaust gas/outside odor detecting sensor according to numerical order 1→2 indicated by arrow as shown in the figure and remove it.
 | : Pawl |
INSTALLATION
Install in the reverse order of removal.
Exploded View
Exhaust gas/outside odor detecting sensor Active grille shutter : Clip : Pawl : Vehicle front ...
