Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
REMOVAL
Remove rear A/C unit assembly. Refer to Removal and Installation.

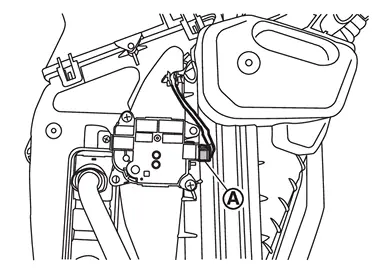

Disconnect rear air mix door motor harness connector
.

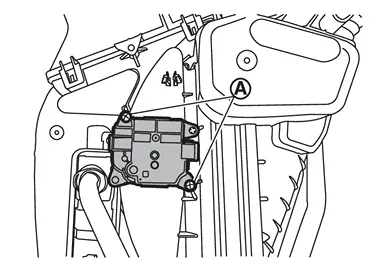

Remove fixing screws , and then remove rear air mix door motor.
INSTALLATION
Install in the reverse order of removal.
