Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
REMOVAL
Apply protective tapes (A) on the part to protect it from damage.

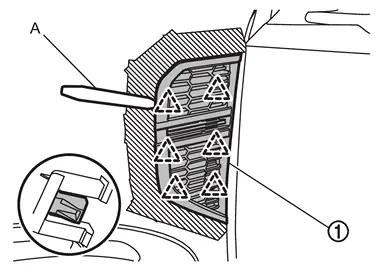

Disengage fixing pawls and peel off double-sided tapes using a remover tool (A), and then remove front fender duct
.
 | : Pawl |
Remove double-sided tape with a double-sided tapes remover from front fender duct and front fender assembly.
INSTALLATION
Note the following items, and then install in the reverse order of removal.
CAUTION:
Never reuse double-sided tape. Always replace it with a new one when it is removed.
NOTE:

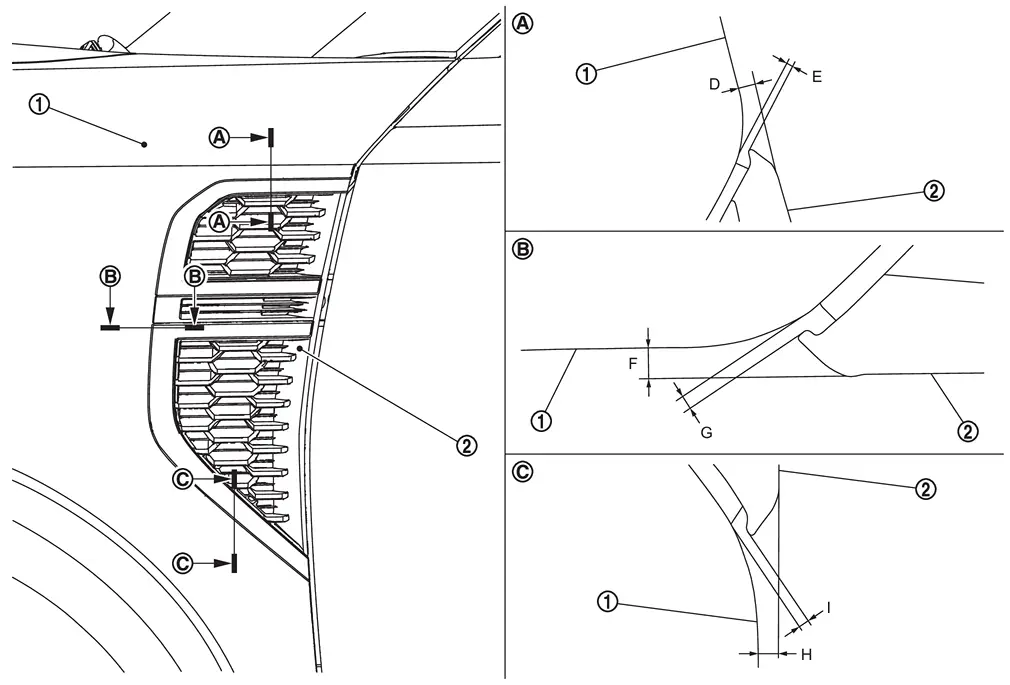

The following table shows the specified values for checking normal installation status.
Fitting adjustment cannot be performed.
| Front fender assembly |  | Front fender duct |
Unit: mm [in]
| Portion | Standard | |||
|---|---|---|---|---|
| Front fender assembly – Front fender duct |  – | D | Surface height | 1.0 ± 1.0 [0.039 ± 0.039] |
| E | Clearance | 0.5 ± 0.5 [0.020 ± 0.020] | ||
 – | F | Surface height | 1.0 ± 1.0 [0.039 ± 0.039] | |
| G | Clearance | 0.5 ± 0.5 [0.020 ± 0.020] | ||
 – | H | Surface height | 1.0 ± 1.0 [0.039 ± 0.039] | |
| I | Clearance | 0.5 ± 0.5 [0.020 ± 0.020] | ||
