Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
REMOVAL
Remove front fender protector tape from front fender assembly.
INSTALLATION
Note the following items, and then install in the reverse order of removal.
CAUTION:
Never reuse front fender protector tape. Always replace it with a new one when it is removed.
Degrease front fender protector tape mounting surface of front fender assembly.

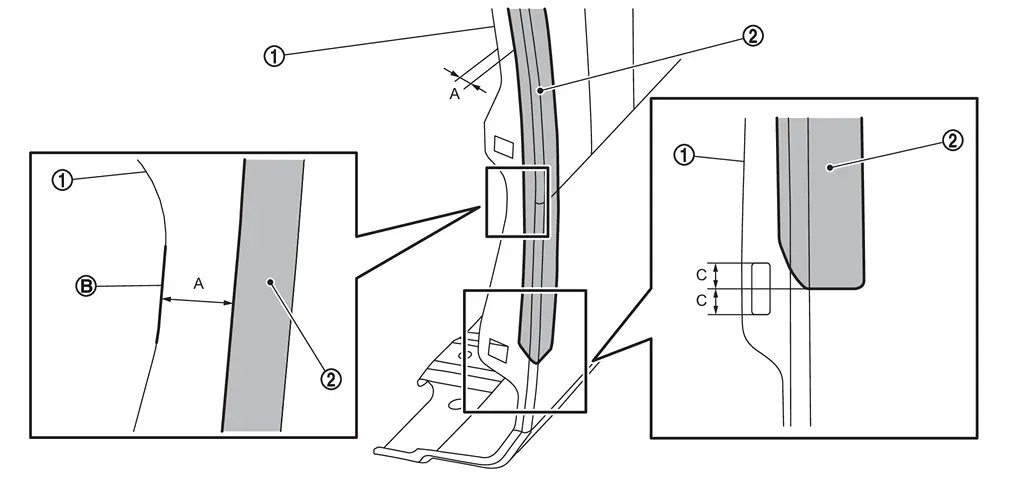

When installing, refer to the figure front fender protector tape position.
Front fender assembly
Front fender protector tape
: Flange edge A : 8.0 mm (0.315 in) C : 4.25 mm (0.1673 in)
