Nissan Armada 2025-2026 Service and Repair Manual: How to Erase Pearmanent Dtc
WHEN A DTC IS STORED IN TCM
When a DTC is stored in TCM and MIL is ON, a permanent DTC is erased with MIL shutoff if the same malfunction is not detected after performing the driving pattern for MIL shutoff three times in a raw.
NOTE:
The following timing chart is for DTC of two trip detection diagnosis.
In case of DTC of one trip detection diagnosis, when NG is detected at one trip, MIL turns ON and permanent DTC is displayed.

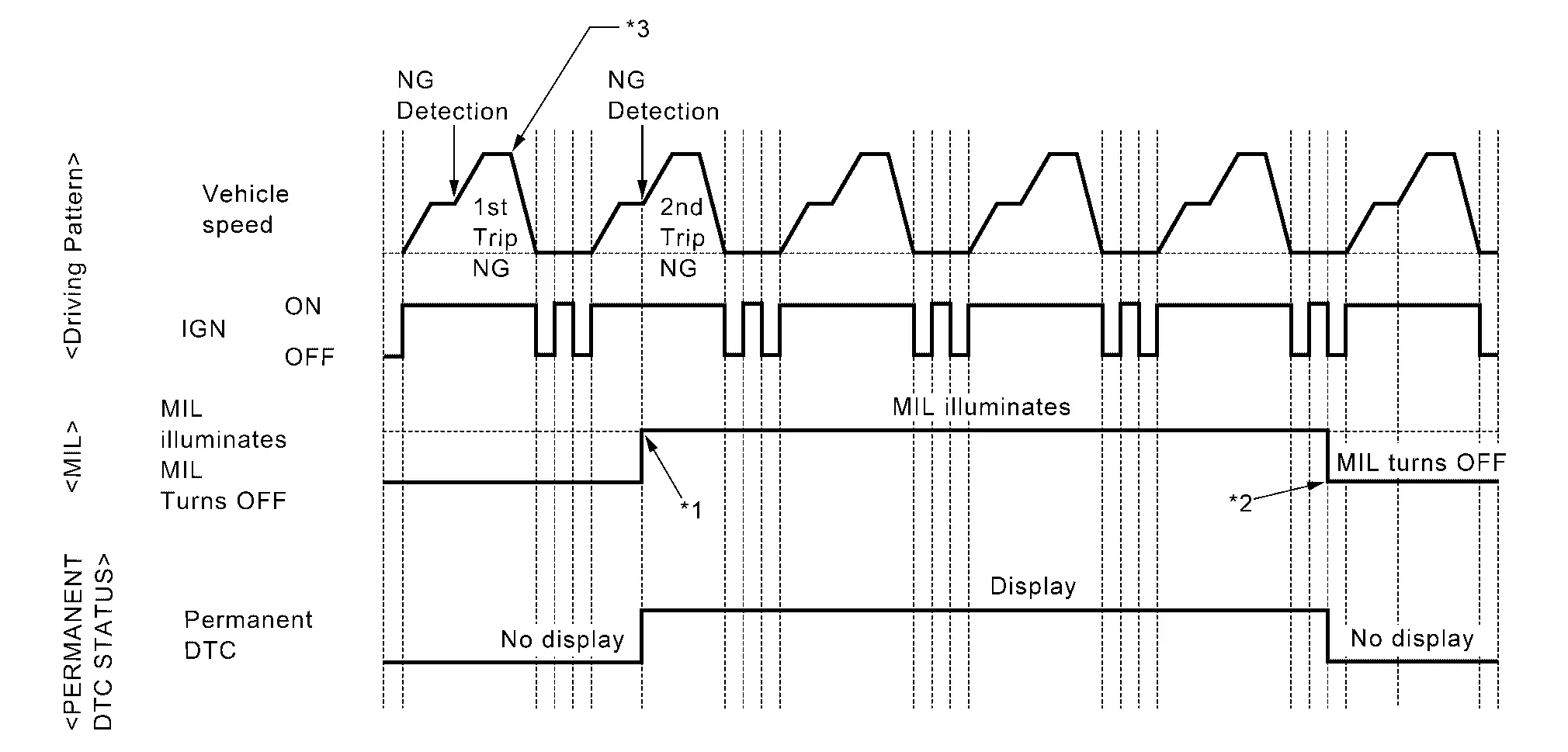

| *1: | When the same malfunction is detected in two consecutive trips, MIL will illuminate. | *2: | MIL will turn off after vehicle is driven 3 times (driving pattern B) without any malfunctions. | *3: | Diagnosis condition *A and diagnosis delay time *A for each DTC are satisfied. (*A: For details of these, refer to DTC/CIRCUIT DIAGNOSIS >> DTC (Pxxxx or Uxxx) >> DTC Description >> DTC DETECTION LOGIC.) |
WHEN A DTC IS NOT STORED IN TCM
The erasing method depends on a permanent DTC stored in TCM.
For erase procedure of permanent DTC, refer to Work Procedure.
PERMANENT DTC ITEM
For permanent DTC items, MIL turns ON. Refer to DTC Index.
Inspection
CHECK SHIFT BUTTON OPERATION
When pressing each shift button of electric shift selector, check that each button is not twisted, stuck, or does not make noise and can be operated smoothly.
After pressi ...
Work Procedure
CHECK DTC
Check DTC.
Is any DTC detected?
YES>>
Repair malfunction(s) and erase DTC.
NO>>
GO TO 2.
CHECK PERMANENT DTC
With CONSULT
Ignition switch OFF and wait at least 60 seconds.
Igni ...
