Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation

Nissan Armada 2025-2026 Service and Repair Manual / Body Exterior, Doors, Roof & Vehicle Security / Door & Lock — Removal and Installation / Front Door / Removal and Installation

CAUTION:

Perform work with 2 workers, because it is heavy weight.

Support door with a proper material and use protective tape or shop cloth to protect door and body from falling and damage when removing and installing door assembly.

REMOVAL

Remove front door check link mounting bolt of vehicle body side.

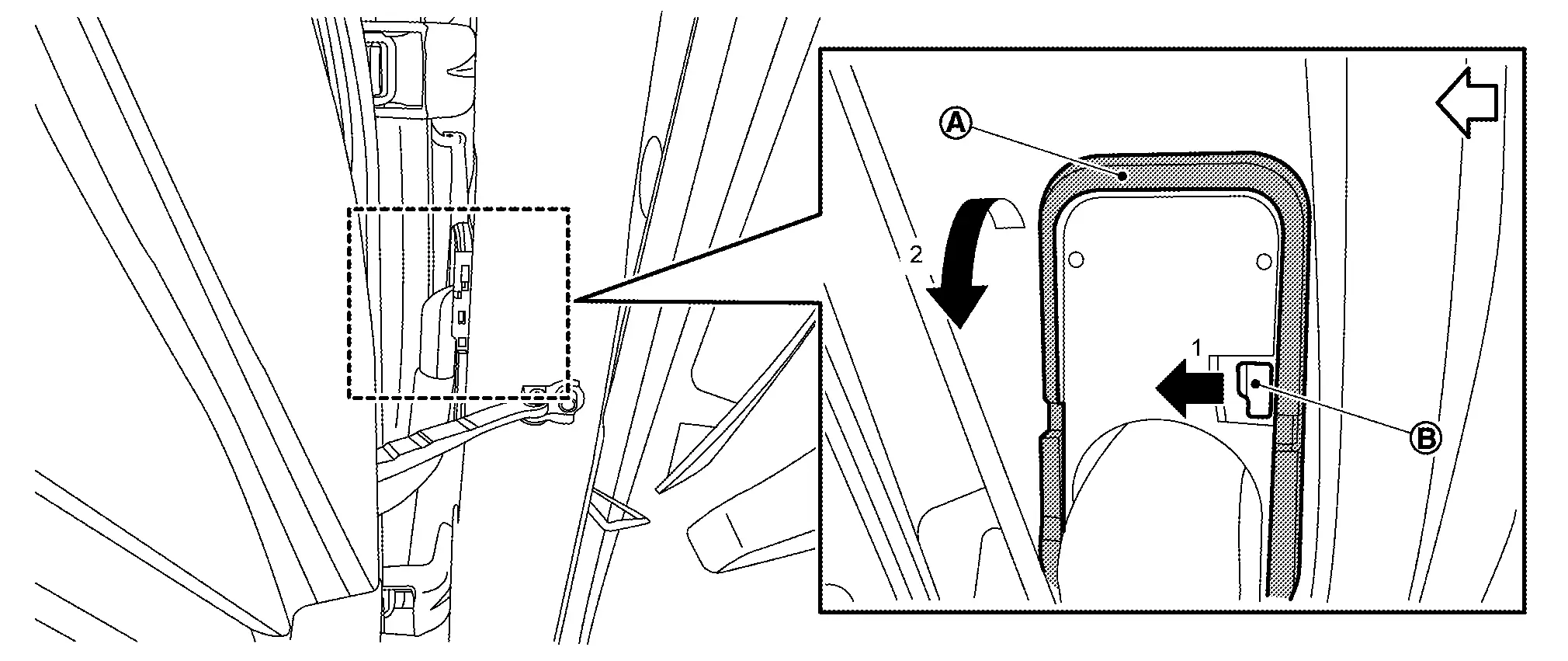

Disengage pawl of front door harness connector, and then release lock release lever according to numerical order 1→2 indicated by arrows as shown in figure and disconnect front door harness connector.

: Vehicle front

Support front door assembly with a proper material to prevent it from falling.

WARNING:

Injury may occur if door assembly is not supported with a proper material when removing front door assembly.

Remove front door hinge mounting nuts, and then remove front door assembly.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

Before installation, apply anticorrosive agent onto mounting surface.

When installation, perform the fitting adjustment. Refer to Adjustment.

After installation, apply touch-up paint (the body color) onto the head of front door hinge mounting nuts.

After installation, check the open/close operation. Refer to Inspection.

After installation, apply anticorrosive around the nuts to prevent rust.

Front Door Assembly

...

Inspection

Open and close front door. Check that front door hinge and front door check link rotation portion moves smoothly. Check front door hinge rotating part for lubrication condition. Apply body grease if n ...
