Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
REMOVAL
Remove rear door finisher. Refer to Removal and Installation.

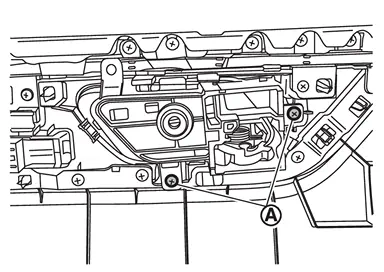

Remove rear door inside handle fixing screws
.

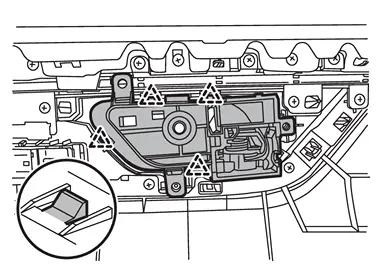

Remove rear door inside handle fixing pawls, and then remove rear door inside handle.
 | ：Pawl |
INSTALLATION
Note the following items, and then install in the reverse order of removal.
CAUTION:
When connecting rear door inside handle cable to rear door inside handle, check that rear door inside handle cable is properly engaged with rear door inside handle.
After installation, check rear door lock. Refer to Inspection.
