Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
REMOVAL
Fully open fuel filler base assembly.

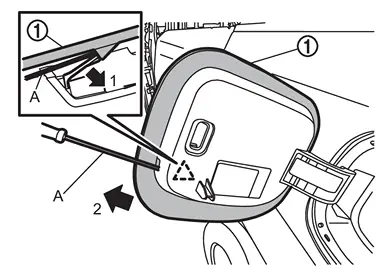

Disengage fuel filler lid fixing pawl using a removal tool (A), and then remove fuel filler lid
according to numerical order 1→2 indicated by arrows as shown in figure.
 | : Pawl |
INSTALLATION
Note the following items, and then install in the reverse order of removal.
CAUTION:
After installation, check fuel filler lid assembly open/close, lock/unlock operation.
NOTE:
Fitting adjustment cannot be performed.
Unit: mm [in]
| Portion | Clearance | Evenness |
|---|---|---|
| Fuel filler lid – Body side outer | 3.0 ± 1.0 [0.118 ± 0.039] | 0.0 ± 1.0 [0.000 ± 0.039] |
Fuel Filler Lid
...
