Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
REMOVAL
Remove front center console bracket. Refer to Removal and Installation.

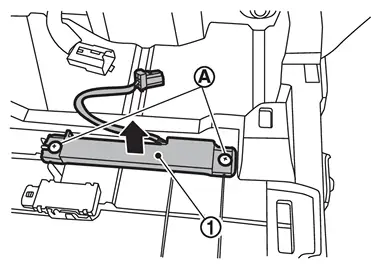

Disconnect inside key antenna (console) harness connector.
Remove inside key antenna (console) fixing TORX bolts
, and then remove inside key antenna (console)
.
INSTALLATION
Install in the reverse order of removal.
