Nissan Armada 2025-2026 Service and Repair Manual: Exploded View

Nissan Armada 2025-2026 Service and Repair Manual / Body Interior / Instrument Panel — Removal and Installation / Front Center Console Assembly / Exploded View

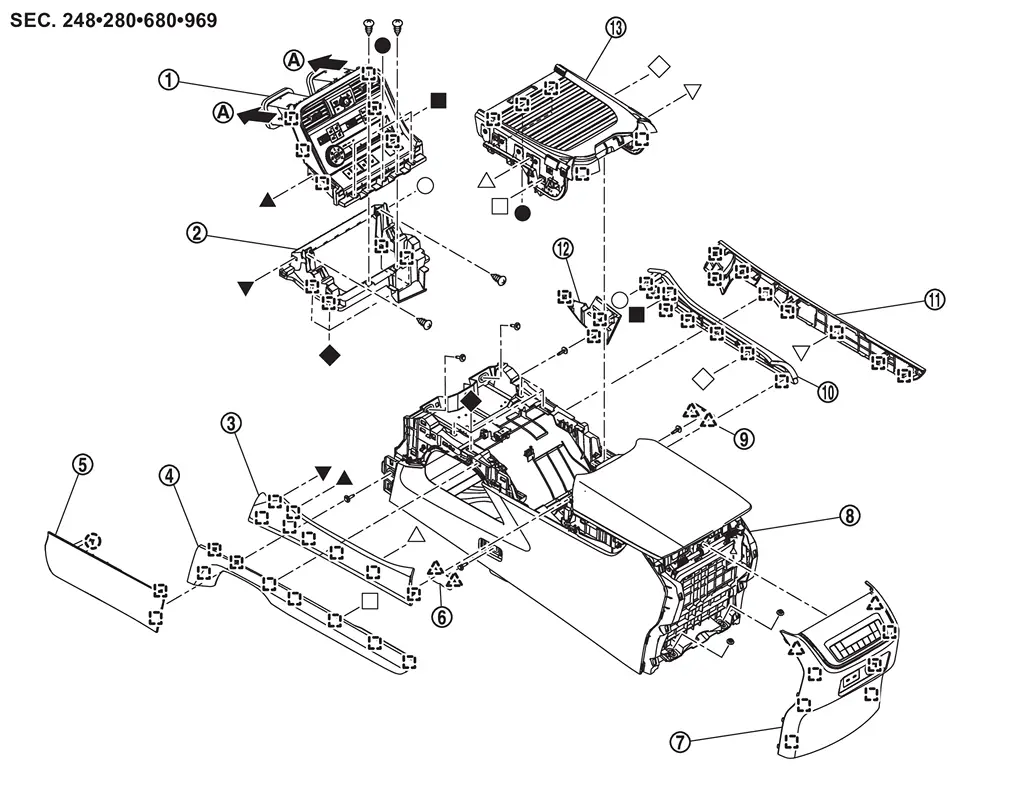

REMOVAL

	Front center console switch finisher assembly	Front center console bracket	Front center console side finisher upper LH
	Front center console side finisher lower LH	Instrument lower cover LH	Front center console mask LH
	Front center console rear finisher assembly	Front center console body assembly	Front center console mask RH
	Front center console side finisher lower RH	Front center console side finisher upper RH	Instrument lower cover RH
	Front center console cup holder assembly
	To instrument pad B
	: Clip
	: Pawl
	: Metal clip
, , , , , , , , , : Indicates that the part is connected at points with same symbol in actual vehicle.

DISASSEMBLY

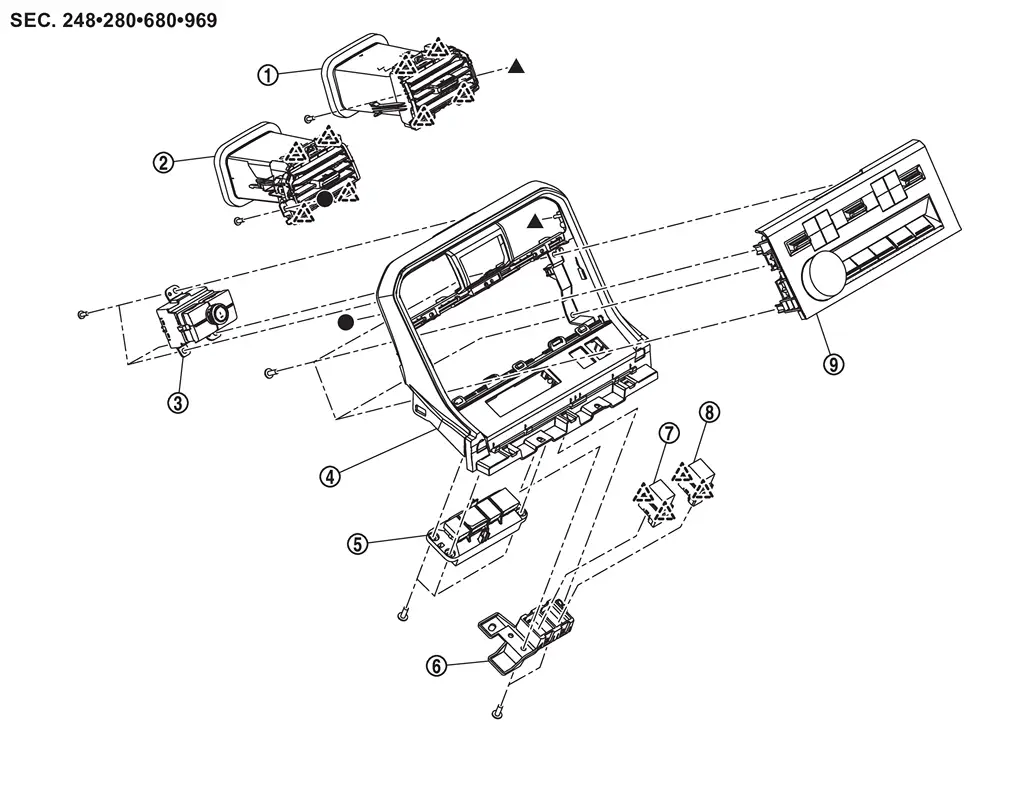

Front center console switch finisher assembly

	Center ventilator grille RH	Center ventilator grille LH	Preset switch
	Front center console switch finisher assembly	Electric shift selector	Switch bracket
	Auto height mode control switch^*	Idle start/stop OFF switch	Multi function switch
	: Pawl
, : Indicates that the part is connected at points with same symbol in actual vehicle.

*: With air suspension models

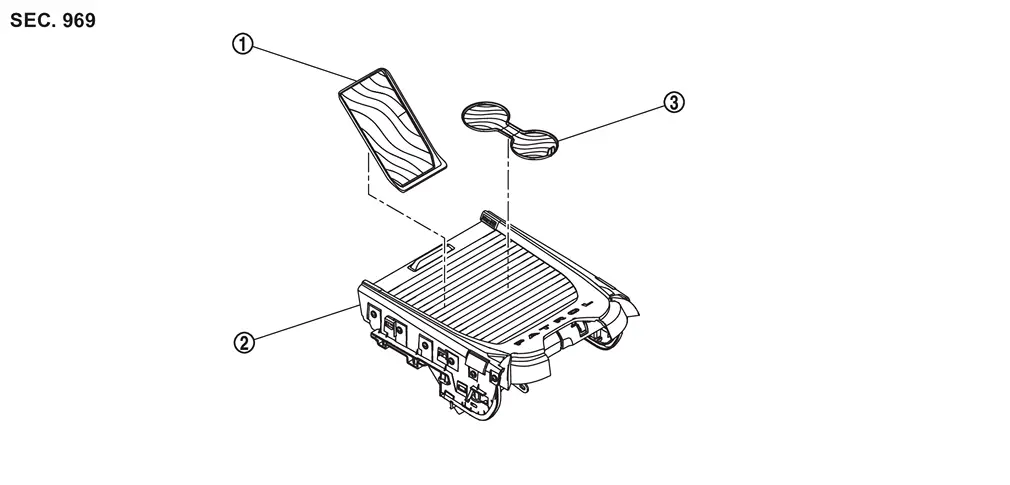

Front Center Console Cup Holder Assembly

Front center console pocket mat

Front center console cup holder assembly

Front center console cup holder mat

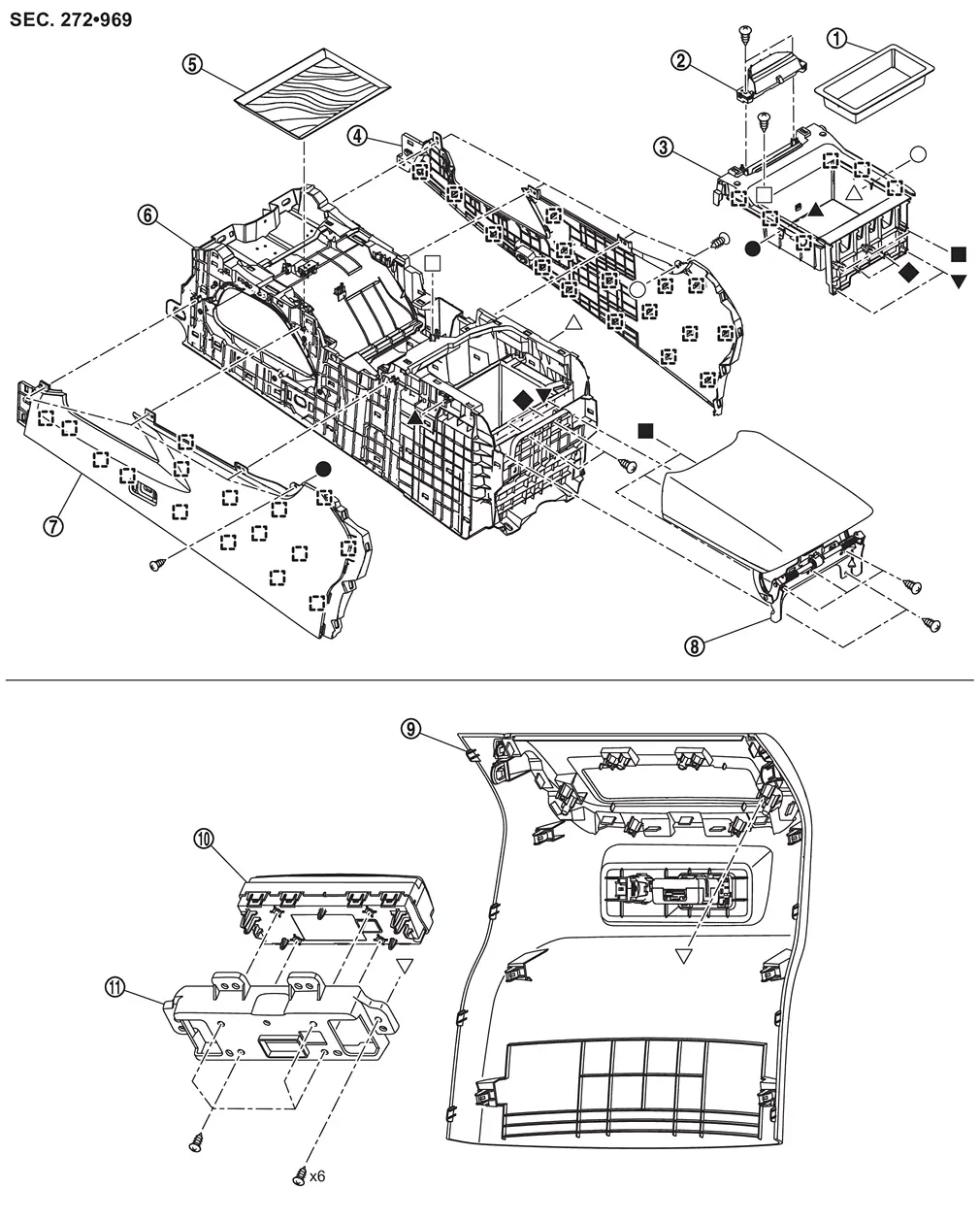

Front Center Console Body Assembly and Front Center Console Rear Finisher Assembly

	Front center console box tray	Front center console lid opener switch	Front center console box
	Front center console body panel RH	Front center console mat	Front center console body
	Front center console body panel LH	Front center console lid	Front center console rear finisher
	Rear A/C control	Rear A/C control bracket
	: Metal clip
, , , , , , , , : Indicates that the part is connected at points with same symbol in actual vehicle.

WARNING: Before servicing, disconnect battery negative terminal. Refer to Precautions for Removing Battery Terminal. CAUTION: Always apply the parking brake before performing removal and installation. ...
