Nissan Armada 2025-2026 Service and Repair Manual: TIG Welding

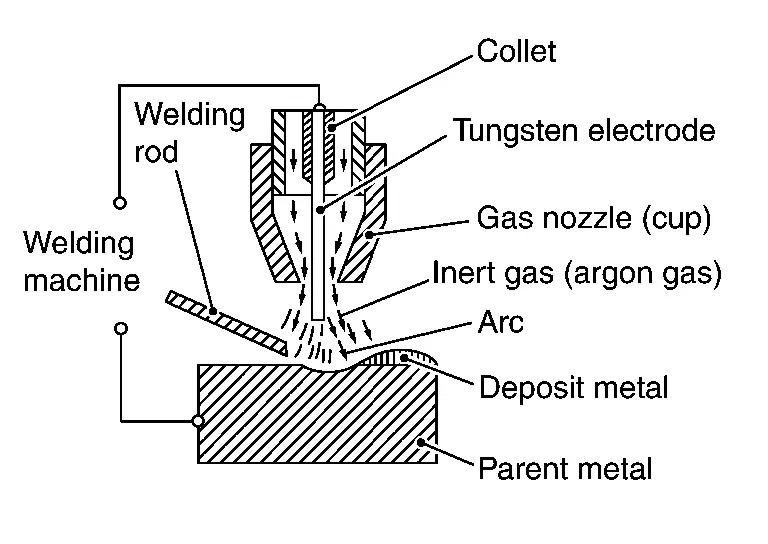

TIG is the abbreviation for tungsten inert gas shielded arc welding. TIG has the following special features.
Special features
Initial cost of the equipment is low, as is maintenance expense.
For ordinary electric power, high frequency alternating current is used.
Easy to learn in a short time.
Excellent strength and anti-corrosion properties.
Ideal for welding instruction and training.
Filler Metal
For a filler metal, TIG welding rods and MIG welding electrode wires are available. Use filler metal that is suitable to the parent metal.
Main selection standards of filler metal Parent metal Filler ...
MIG Welding
MIG is the abbreviation for metal inert gas shielded arc welding. MIG welding has the following special features.
(1) NORMAL MIG WELDING
MIG welding is the most commonly used welding method. As shown ...
